INA GE25-XL-KTT-B-AS2/V

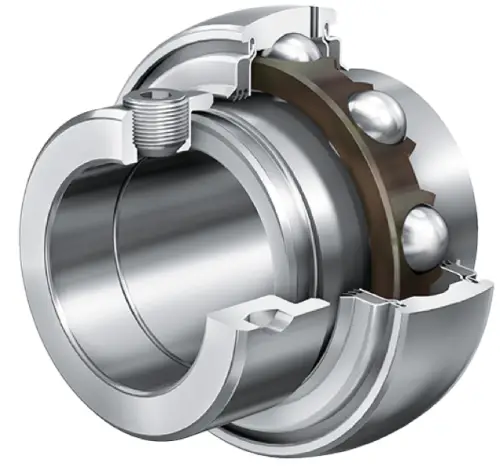

Insert Ball Bearings and Belt Tension Pulleys
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

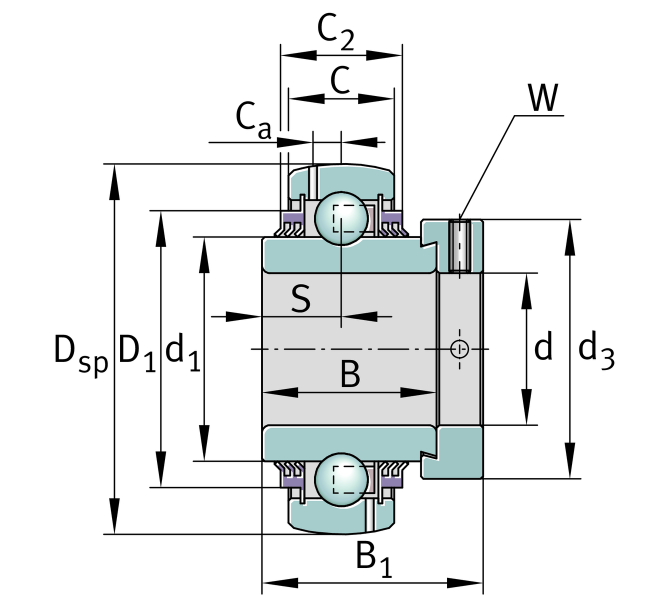

Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
34.9 mm
Width
B1
44.5 mm
Locking collar total width
Cr
13,700 N
Basic dynamic load rating, radial
C0r
7,100 N
Basic static load rating, radial
≈m
0.237 kg
Weight
