INA GE25-ZO-2RS-E
Spherical Plain Bearings

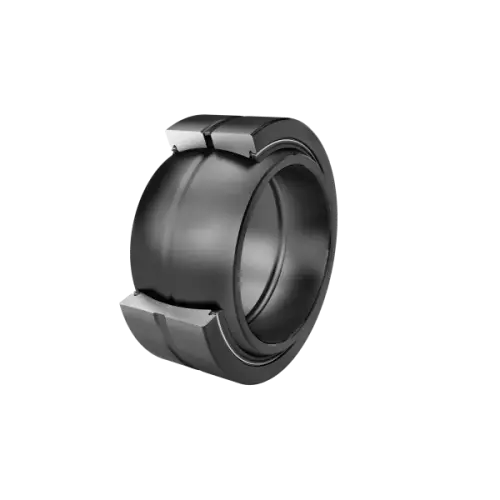

Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock

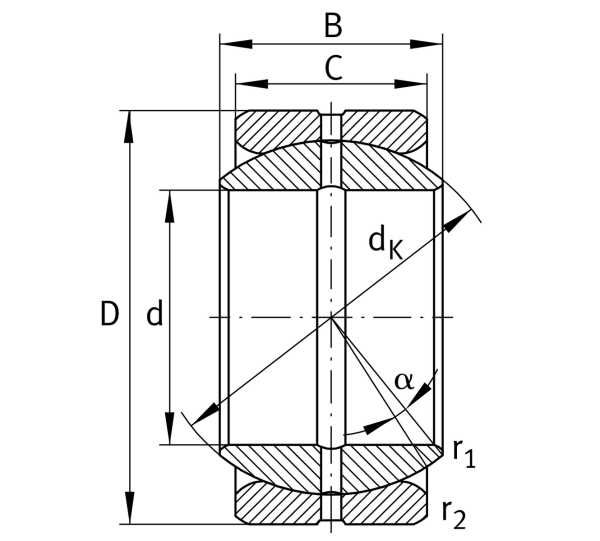

Main Dimensions & Performance Data
d
25.4 mm
Bore diameter bearing
D
41.275 mm
Outside diameter bearing
B
22.225 mm
Width Inner ring
Cr
54,100 N
Basic dynamic load rating, radial
C0r
271,000 N
Basic static load rating, radial
≈m
0.12 kg
Weight

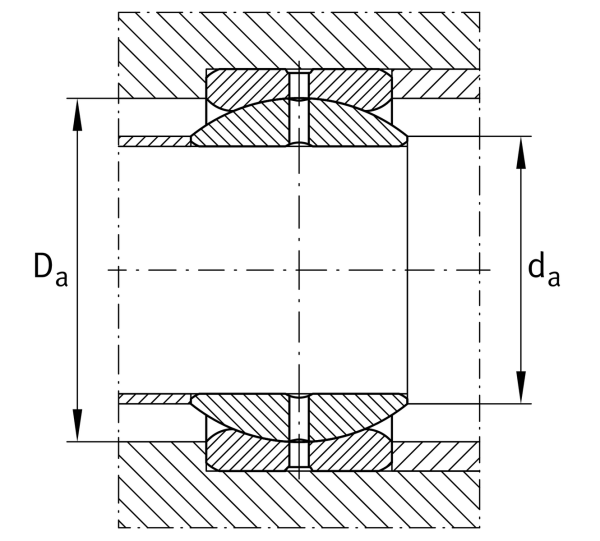

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
27.7 mm
Connection measure Inner ring
Da min
31.5 mm
Housing Connection Diameter
