INA GE260-AW-XL
Spherical Plain Bearings

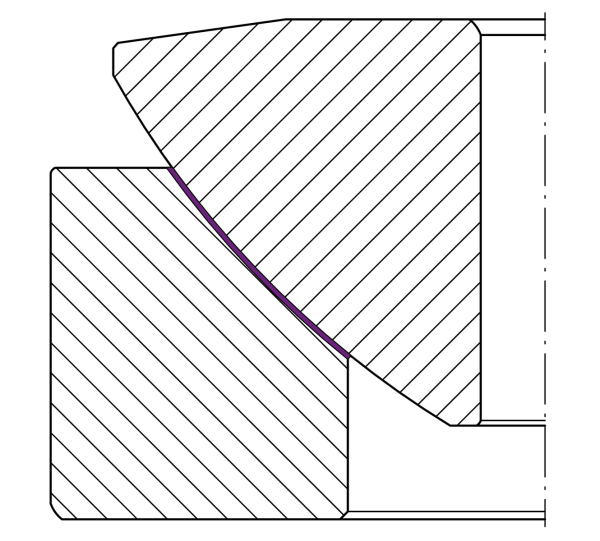

Spherical plain bearing GE..-AW-A-XL, axial/oblique, maintenance-free
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
260 mm
Bore diameter bearing
D
430 mm
Outside diameter bearing
T
115 mm
Height
B
95 mm
Width Inner ring
Ca
10,800,000 N
Basic dynamic load rating, axial
C0a
18,000,000 N
Basic static load rating, axial
≈m
77.8 kg
Weight

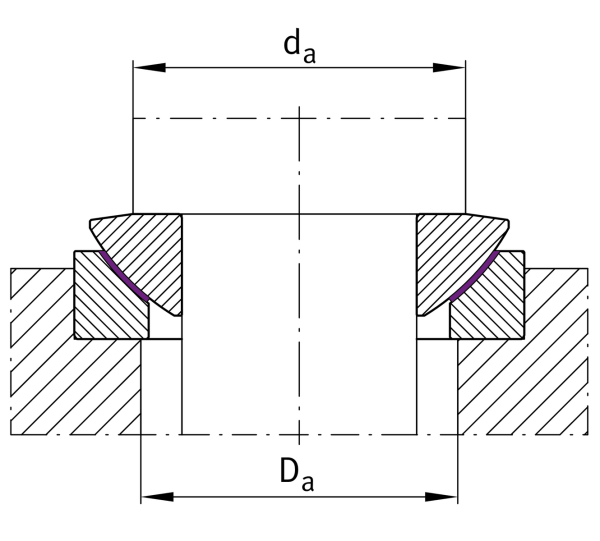

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
336 mm
Connection measure Inner ring
Da min
332 mm
Housing Connection Diameter
