INA GE260-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open designu00A0High-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
260 mm
Bore diameter bearing
D
370 mm
Outside diameter bearing
B
150 mm
Width Inner ring
Cr
3,040,000 N
Basic dynamic load rating, radial
C0r
15,200,000 N
Basic static load rating, radial
≈m
51.2 kg
Weight

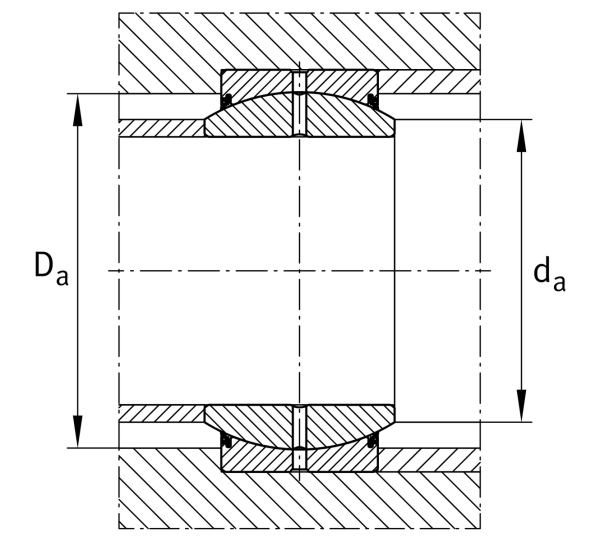

Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
da max
288.3 mm
Connection measure Inner ring
Da min
319 mm
Housing Connection Diameter
