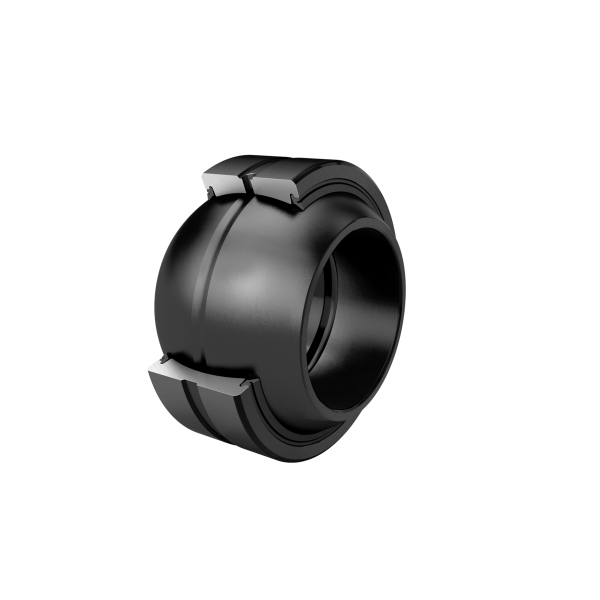

INA GE260-FO-2RS
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series G, sealedHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
260 mm
Bore diameter bearing
D
400 mm
Outside diameter bearing
B
205 mm
Width Inner ring
Cr
4,640,000 N
Basic dynamic load rating, radial
C0r
17,900,000 N
Basic static load rating, radial
≈m
82 kg
Weight

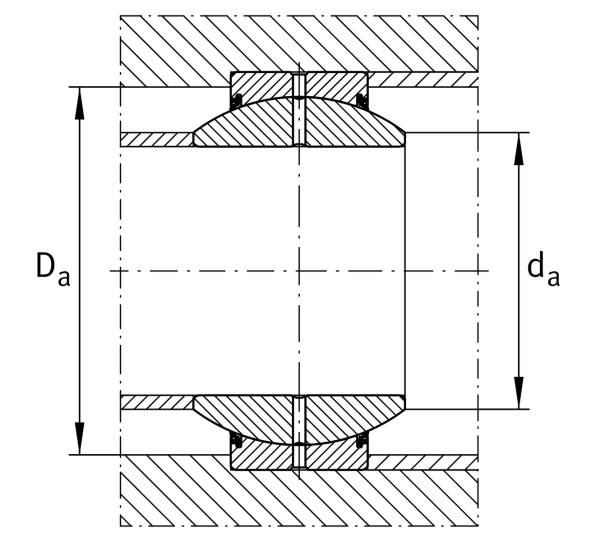

Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
da max
283.7 mm
Connection measure Inner ring
Da min
342 mm
Housing Connection Diameter
