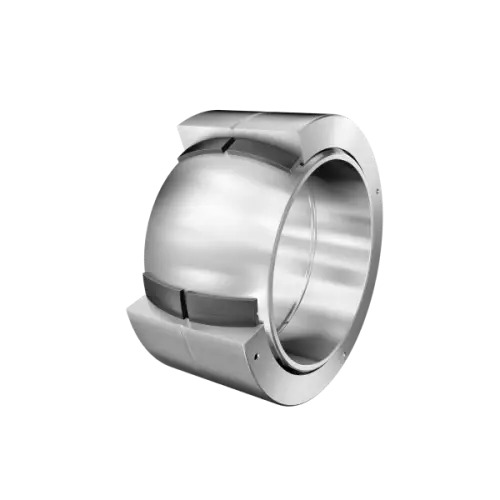

INA GE260-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock

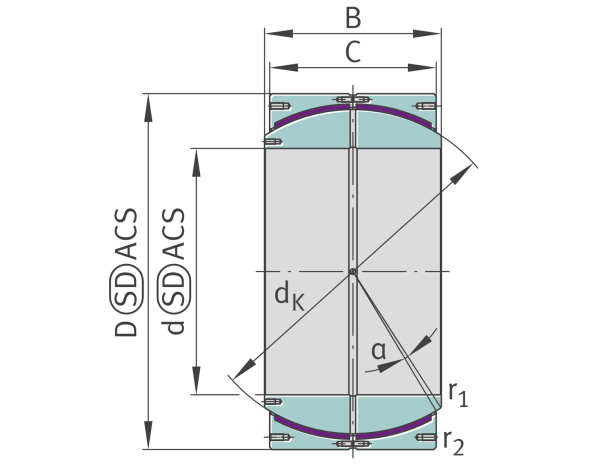

Main Dimensions & Performance Data
d
260 mm
Bore diameter bearing
D
370 mm
Outside diameter bearing
B
185 mm
Width Inner ring
C
175 mm
Width Outer ring
Cr
4,250,000 N
Basic dynamic load rating, radial
C0r
6,400,000 N
Basic static load rating, radial
≈m
69.5 kg
Weight
Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
Damin
317 mm
Housing Connection Diameter
damax
285 mm
Connection measurement, inner ring
