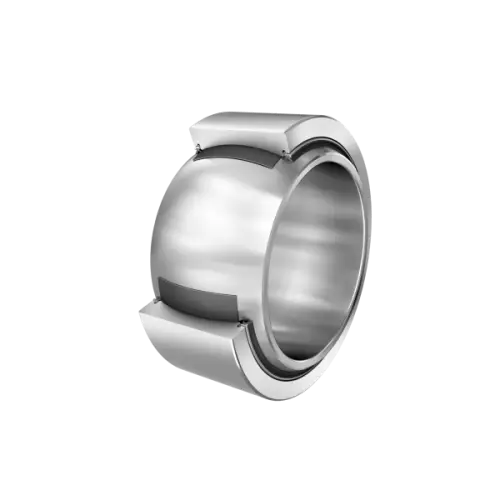

INA GE260-UK-2RS
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
260 mm
Bore diameter bearing
D
370 mm
Outside diameter bearing
B
150 mm
Width Inner ring
C
110 mm
Width Outer ring
Cr
8,580,000 N
Basic dynamic load rating, radial
C0r
14,300,000 N
Basic static load rating, radial
≈m
50.4 kg
Weight
Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
Damin
319 mm
Housing Connection Diameter
damax
288.3 mm
Connection measurement, inner ring
