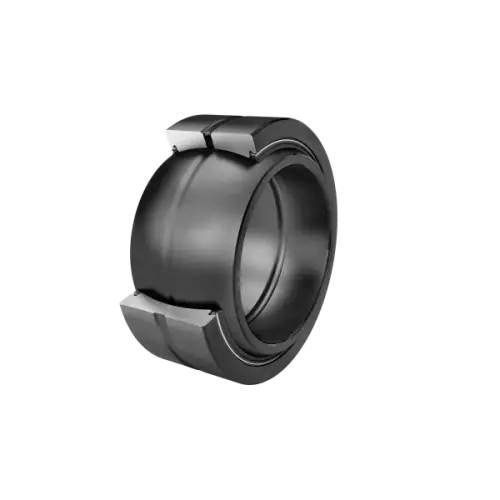

INA GE280-DO-2TS
Spherical Plain Bearings
High performance radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, sealedHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

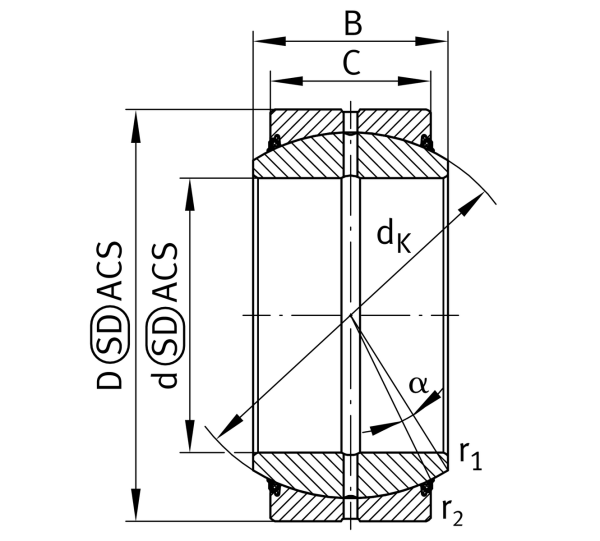

Main Dimensions & Performance Data
d
280 mm
Bore diameter bearing
D
400 mm
Outside diameter bearing
B
155 mm
Width Inner ring
Cr
3,570,000 N
Basic dynamic load rating, radial
C0r
17,900,000 N
Basic static load rating, radial
≈m
64.8 kg
Weight

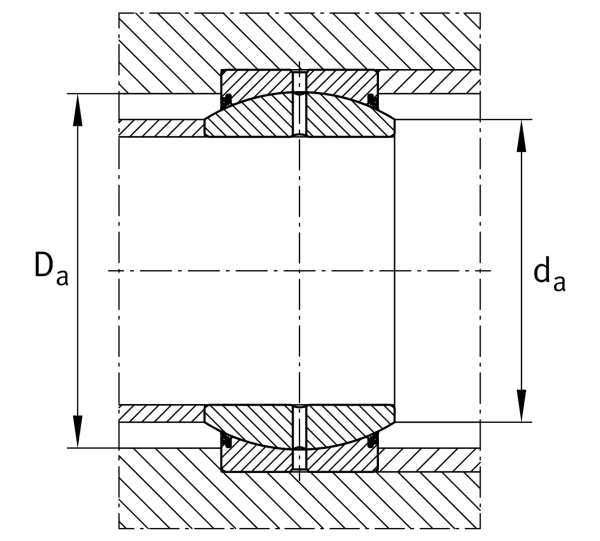

Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
da max
313.8 mm
Connection measure Inner ring
Da min
342 mm
Housing Connection Diameter
