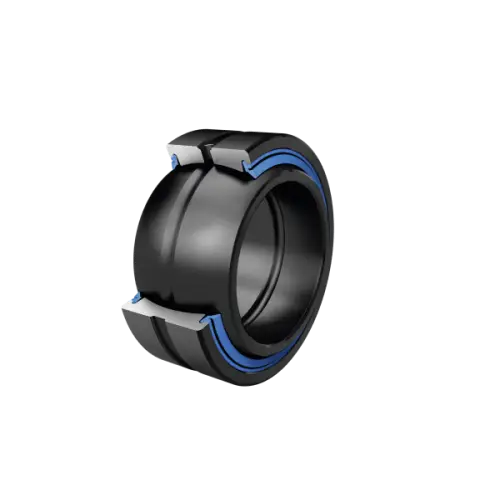

INA GE30-DO-2RS-E
Spherical Plain Bearings
Standard performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, sealed
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

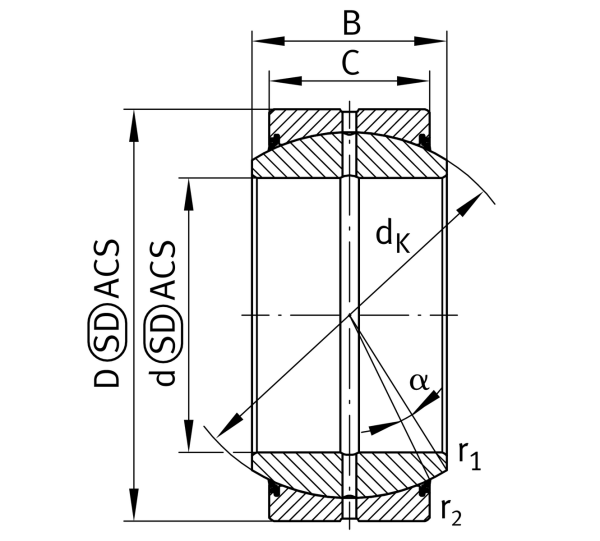

Main Dimensions & Performance Data
d
30 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
B
22 mm
Width Inner ring
Cr
62,300 N
Basic dynamic load rating, radial
C0r
311,000 N
Basic static load rating, radial
≈m
0.14 kg
Weight

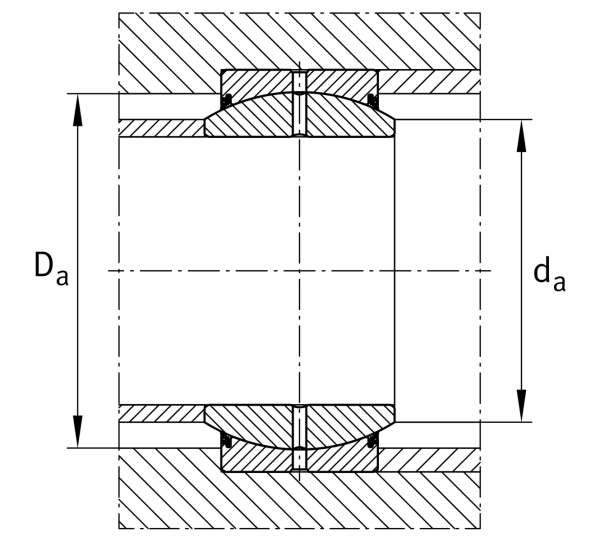

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
34.2 mm
Connection measure Inner ring
Da min
39 mm
Housing Connection Diameter
