INA GE30-SW
Spherical Plain Bearings

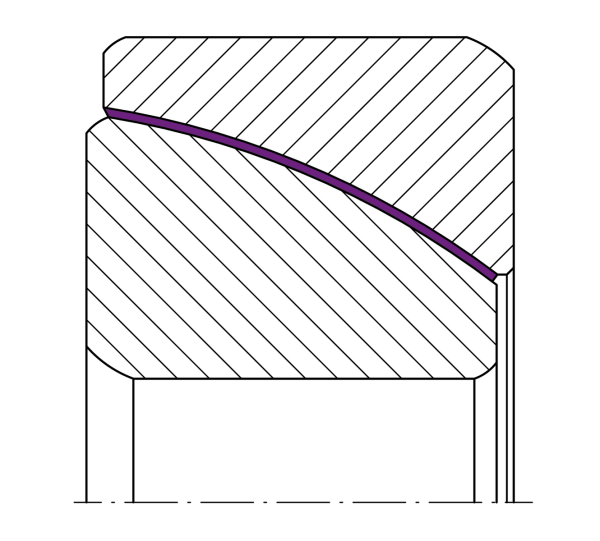

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

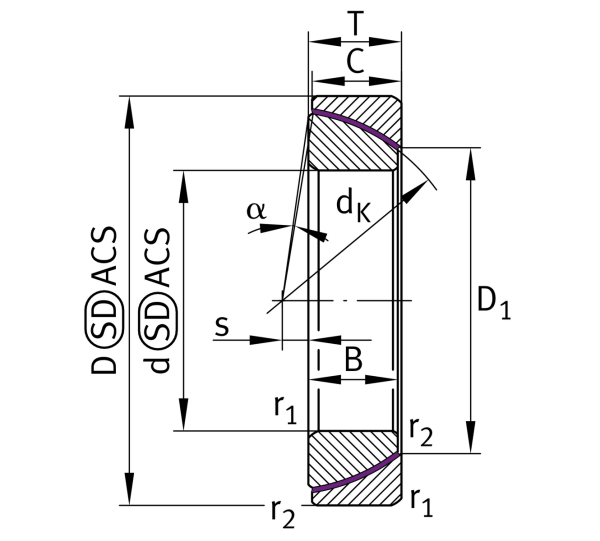

Main Dimensions & Performance Data
d
30 mm
Bore diameter bearing
D
55 mm
Outside diameter bearing
T
17 mm
Height
B
16 mm
Width Inner ring
Cr
194,000 N
Basic dynamic load rating, radial
C0r
323,000 N
Basic static load rating, radial
≈m
0.21 kg
Weight

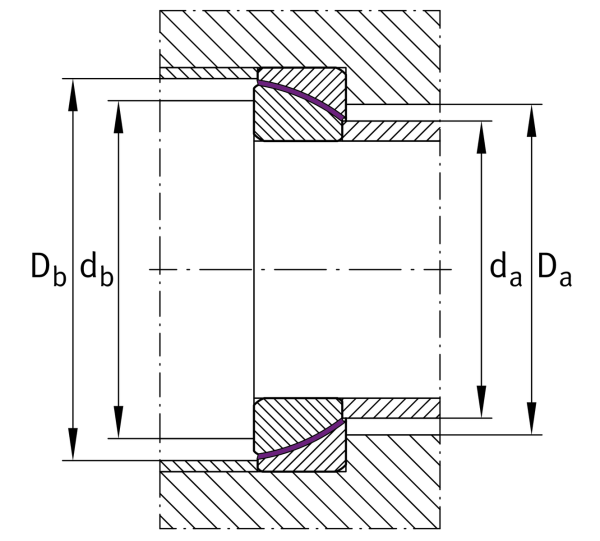

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
34.6 mm
Connection measure Inner ring
Db min
50.5 mm
Connection diameter
db max
45 mm
Connection measure Inner ring
Da min
40.5 mm
Housing Connection Diameter
