INA GE30-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock

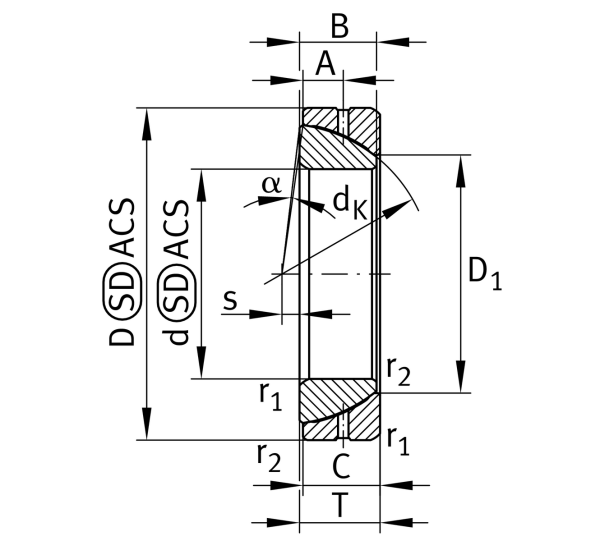

Main Dimensions & Performance Data
d
30 mm
Inner diameter bearing
D
55 mm
Outside diameter bearing
T
17 mm
Height
Cr
84,000 N
Basic dynamic load rating, radial
C0r
323,000 N
Basic static load rating, radial
≈m
0.21 kg
Weight

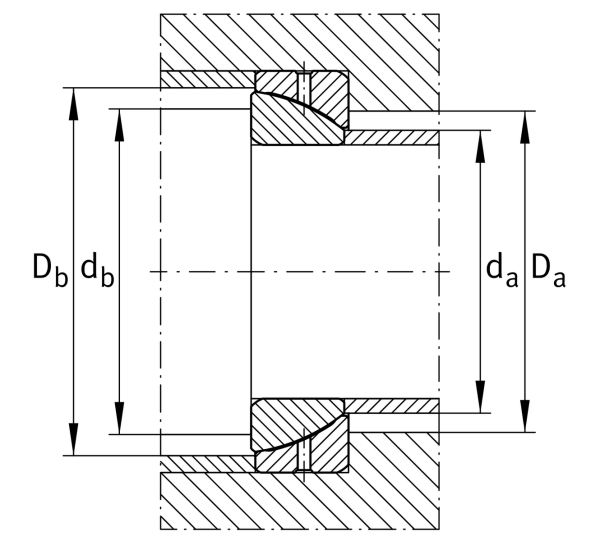

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
34.7 mm
Connection measure Inner ring
Da min
40.5 mm
Housing Connection Diameter
Db min
50.5 mm
Connection diameter
