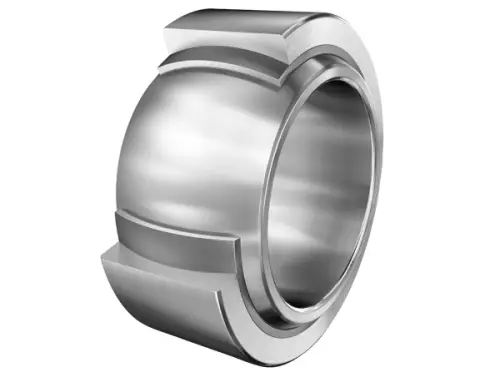

INA GE30-UK
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

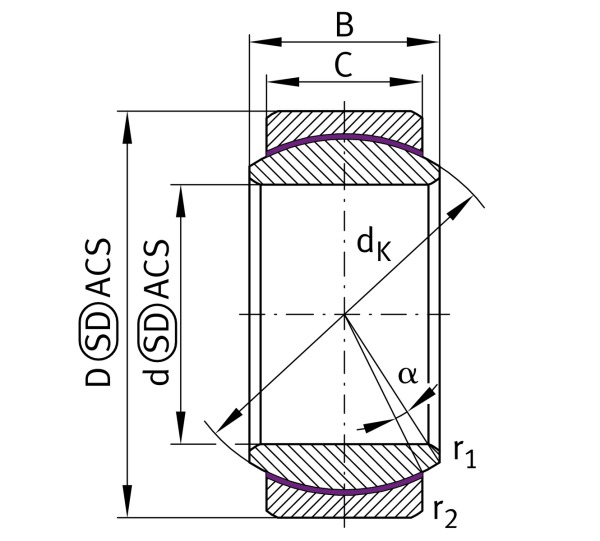

Main Dimensions & Performance Data
d
30 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
B
22 mm
Width Inner ring
C
18 mm
Width Outer ring
Cr
65,900 N
Basic dynamic load rating, radial
C0r
165,000 N
Basic static load rating, radial
≈m
0.148 kg
Weight

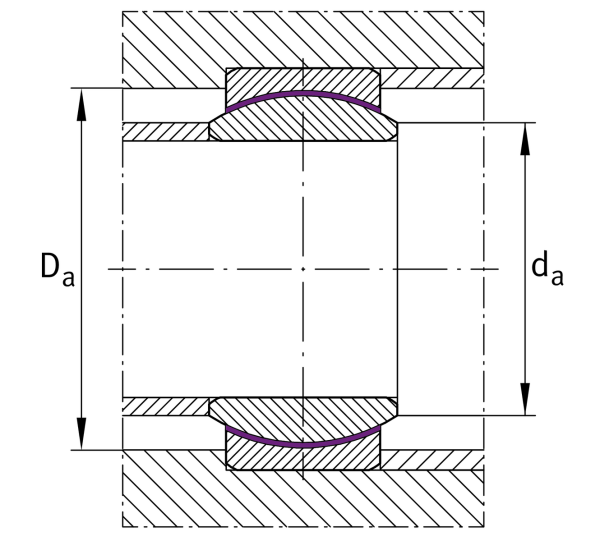

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
Damin
38 mm
Housing Connection Diameter
damax
34.2 mm
Connection measurement, inner ring
