INA GE300-AW-XL
Spherical Plain Bearings

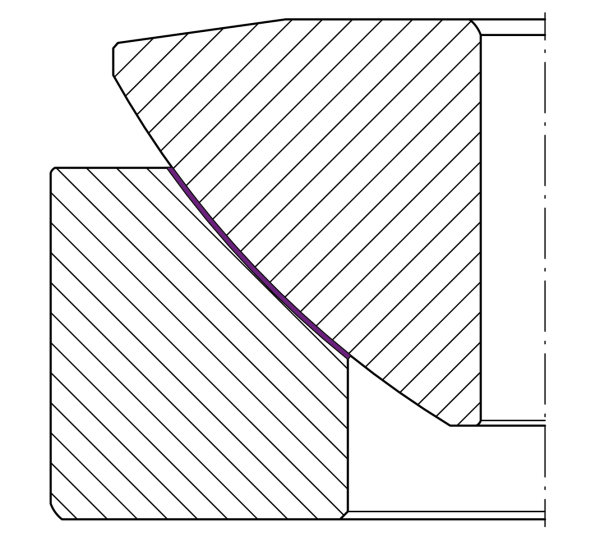

Spherical plain bearing GE..-AW-A-XL, axial/oblique, maintenance-free
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
300 mm
Bore diameter bearing
D
480 mm
Outside diameter bearing
T
110 mm
Height
B
100 mm
Width Inner ring
Ca
17,300,000 N
Basic dynamic load rating, axial
C0a
28,800,000 N
Basic static load rating, axial
≈m
88.6 kg
Weight

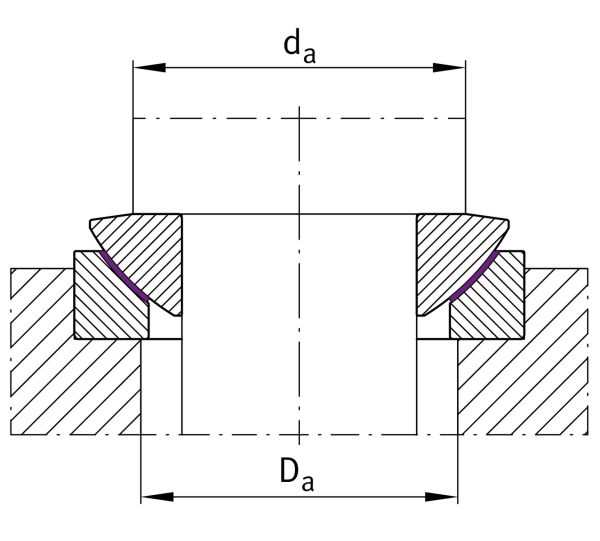

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
388 mm
Connection measure Inner ring
Da min
375 mm
Housing Connection Diameter
