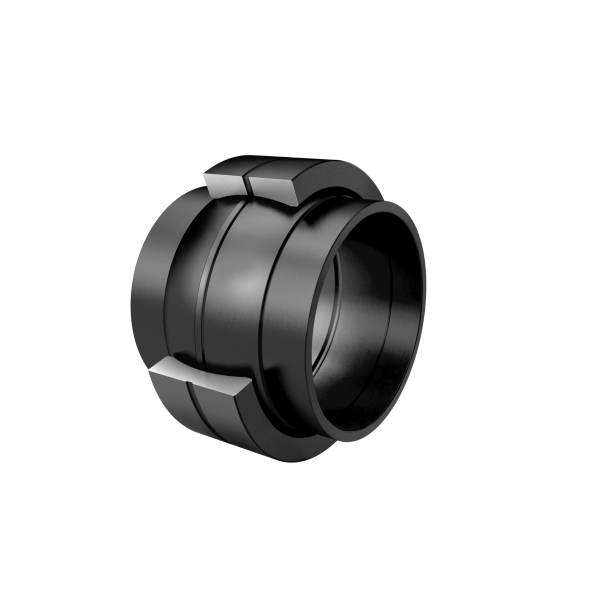

INA GE320-LO
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series W, cylindrical extensions on inner ring, open designHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock

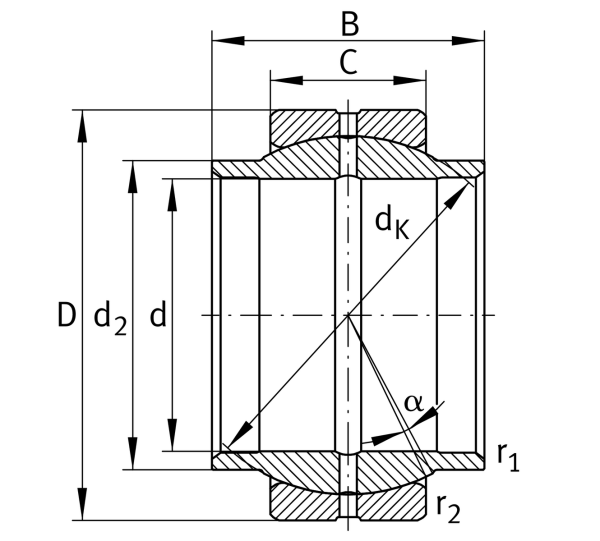

Main Dimensions & Performance Data
d
320 mm
Bore diameter bearing
D
520 mm
Outside diameter bearing
B
320 mm
Width Inner ring
Cr
9,010,000 N
Basic dynamic load rating, radial
C0r
34,700,000 N
Basic static load rating, radial
≈m
224.3 kg
Weight

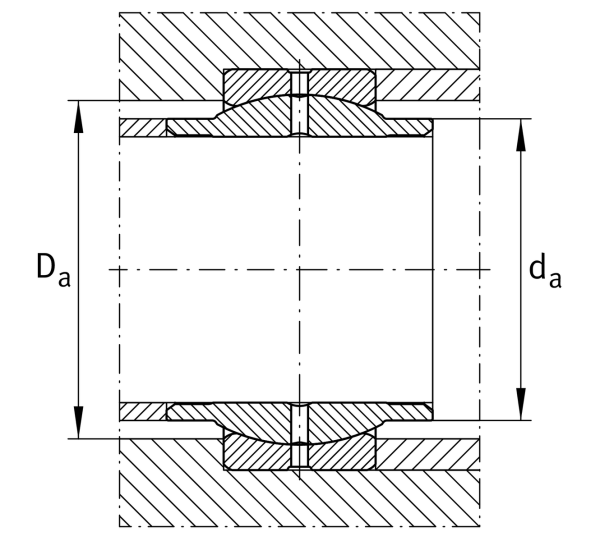

Mounting dimensions
r1smin
2.5 mm
Edge Spacing
r2smin
4 mm
Edge Spacing
da max
405 mm
Connection measure Inner ring
Da min
438 mm
Housing Connection Diameter
