INA GE34-ZO-2RS-E
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/stee,, inch size, sealed design
(BRAND)：INA
(Availability)：In Stock

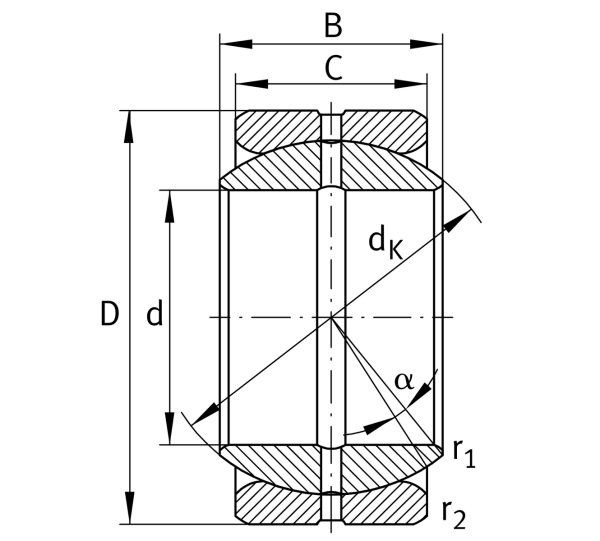

Main Dimensions & Performance Data
d
34.925 mm
Bore diameter bearing
D
55.563 mm
Outside diameter bearing
B
30.15 mm
Width Inner ring
Cr
103,000 N
Basic dynamic load rating, radial
C0r
513,000 N
Basic static load rating, radial
≈m
0.29 kg
Weight

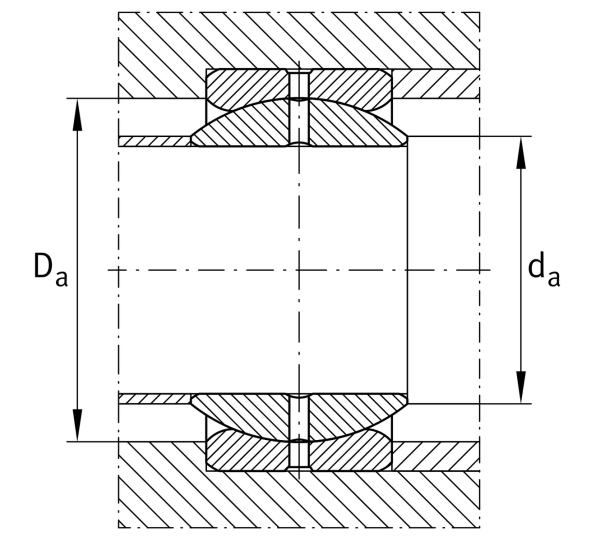

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
38.6 mm
Connection measure Inner ring
Da min
43.5 mm
Housing Connection Diameter
