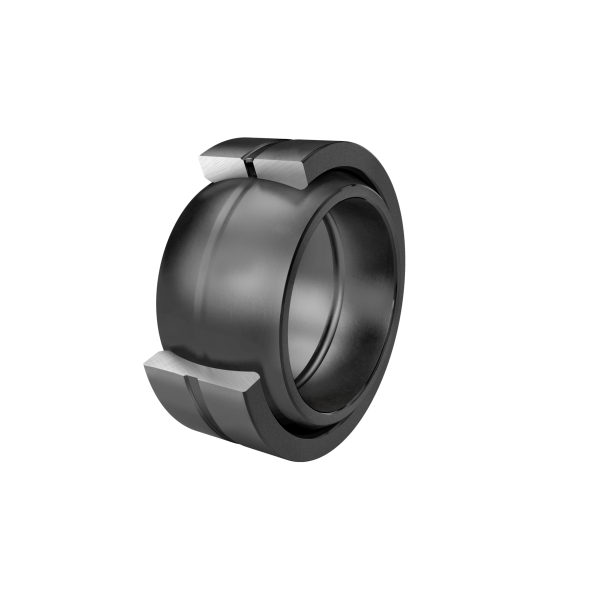

INA GE35-DO-E
Spherical Plain Bearings
Standard performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open design
(BRAND)：INA
(Availability)：In Stock

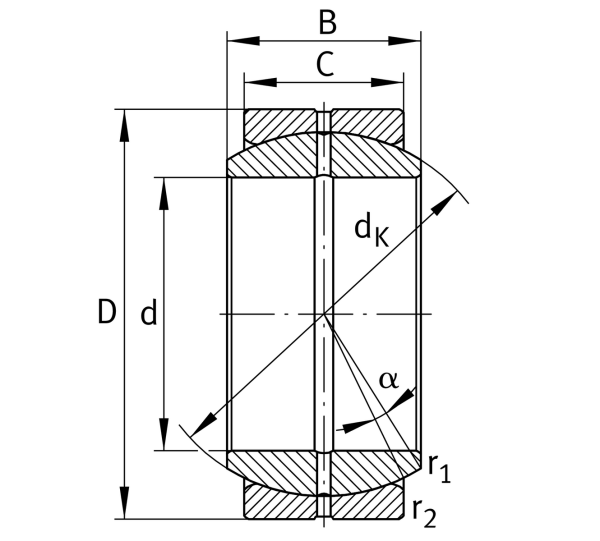

Main Dimensions & Performance Data
d
35 mm
Bore diameter bearing
D
55 mm
Outside diameter bearing
B
25 mm
Width Inner ring
Cr
79,900 N
Basic dynamic load rating, radial
C0r
400,000 N
Basic static load rating, radial
≈m
0.22 kg
Weight

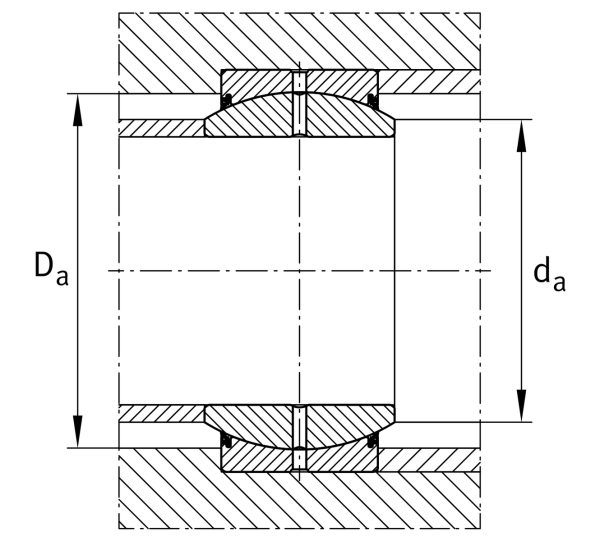

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
39.7 mm
Connection measure Inner ring
Da min
44.2 mm
Housing Connection Diameter
