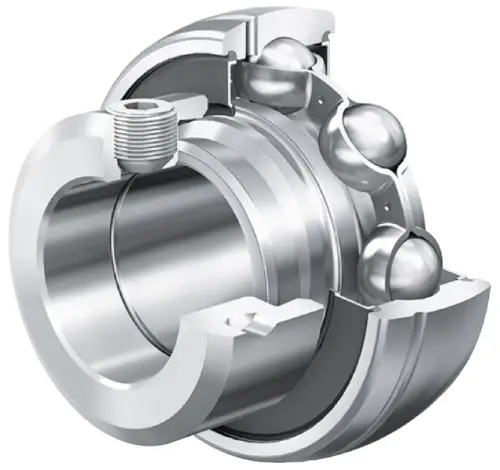

INA GE35-KRR-B-FA107-VA-FD
Insert Ball Bearings and Belt Tension Pulleys
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

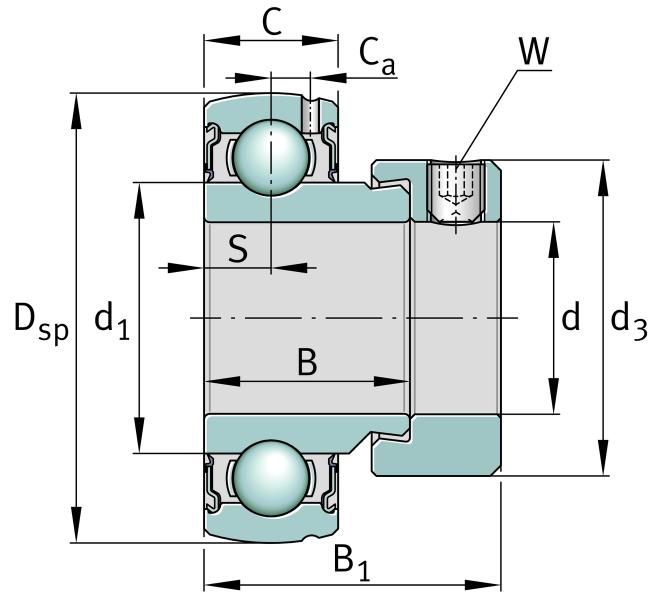

Main Dimensions & Performance Data
d
35 mm
Bore diameter
DSP
72 mm
Outside diameter
B
25.4 mm
Width
Cur
655 N
Fatigue load limit, radial
B1
38.9 mm
Locking collar total width
Cr
25,670 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
0.5 kg
Weight
