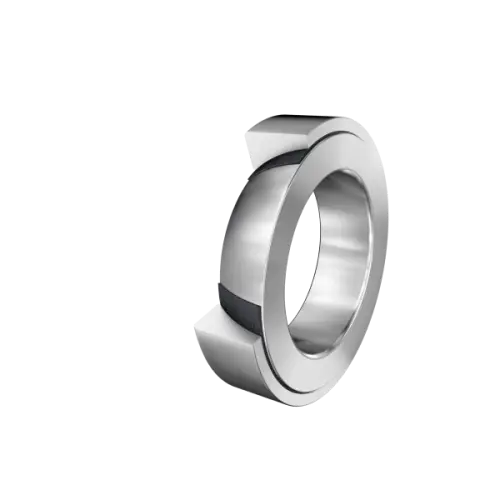

INA GE35-SW
Spherical Plain Bearings

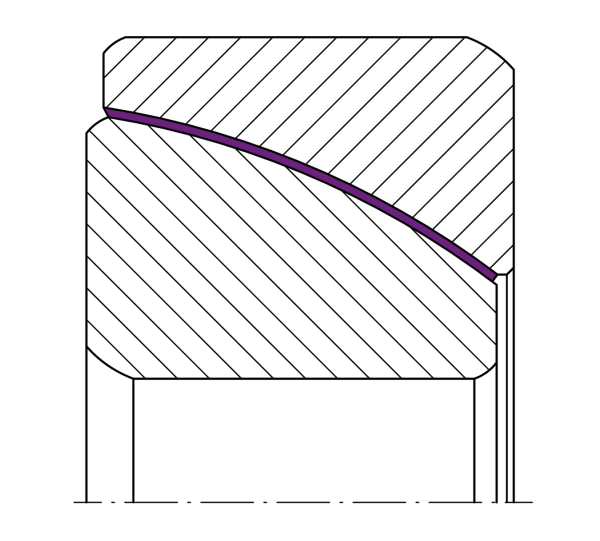

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

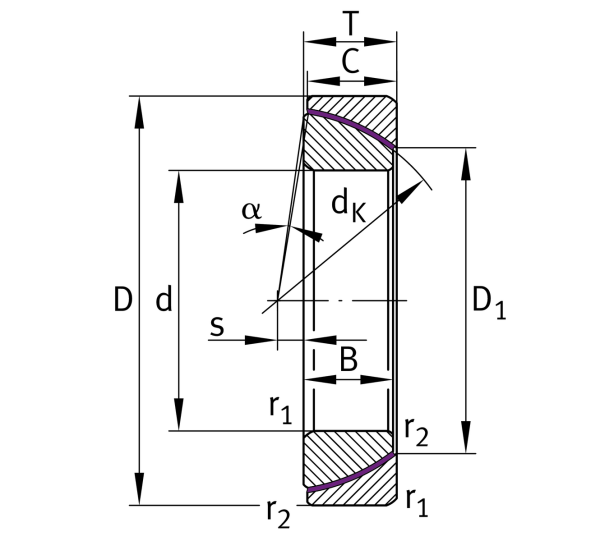

Main Dimensions & Performance Data
d
35 mm
Bore diameter bearing
D
62 mm
Outside diameter bearing
T
18 mm
Height
B
17 mm
Width Inner ring
Cr
236,000 N
Basic dynamic load rating, radial
C0r
393,000 N
Basic static load rating, radial
≈m
0.277 kg
Weight

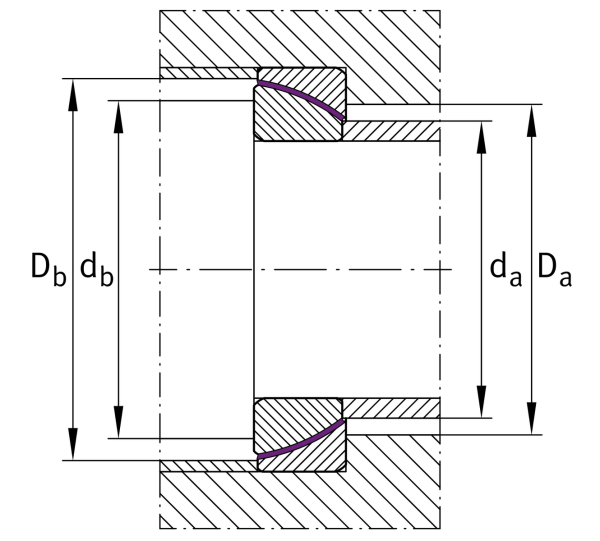

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
41.1 mm
Connection measure Inner ring
Db min
57 mm
Connection diameter
db max
50 mm
Connection measure Inner ring
Da min
47 mm
Housing Connection Diameter
