INA GE35-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock

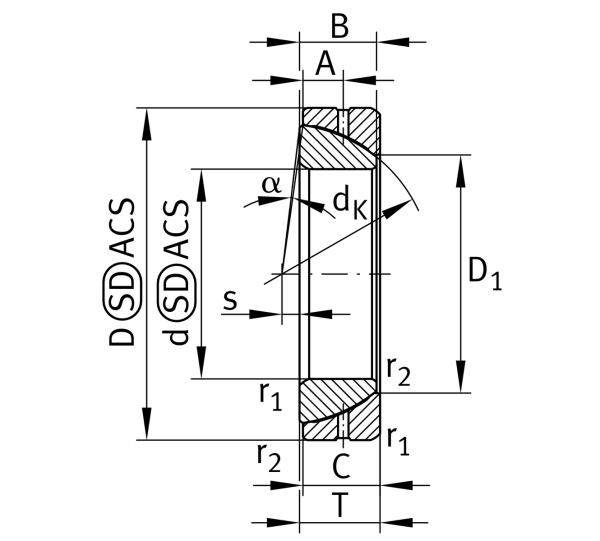

Main Dimensions & Performance Data
d
35 mm
Inner diameter bearing
D
62 mm
Outside diameter bearing
T
18 mm
Height
Cr
102,000 N
Basic dynamic load rating, radial
C0r
393,000 N
Basic static load rating, radial
≈m
0.272 kg
Weight

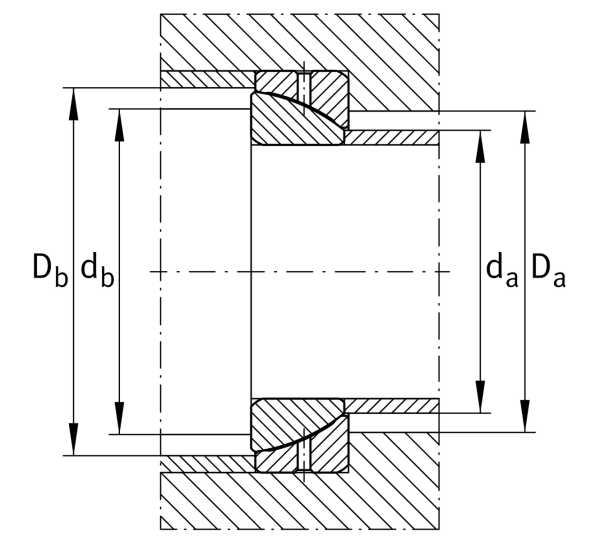

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
41.1 mm
Connection measure Inner ring
Da min
47 mm
Housing Connection Diameter
Db min
57 mm
Connection diameter
