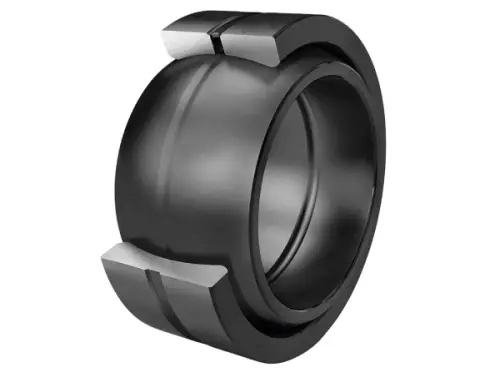

INA GE38-ZO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, inch size, open design
(BRAND)：INA
(Availability)：In Stock

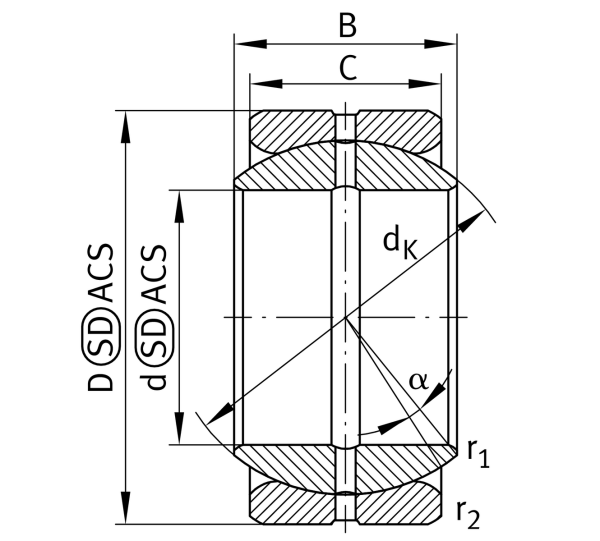

Main Dimensions & Performance Data
d
38.1 mm
Bore diameter bearing
D
61.913 mm
Outside diameter bearing
B
33.325 mm
Width Inner ring
Cr
125,000 N
Basic dynamic load rating, radial
C0r
625,000 N
Basic static load rating, radial
≈m
0.404 kg
Weight

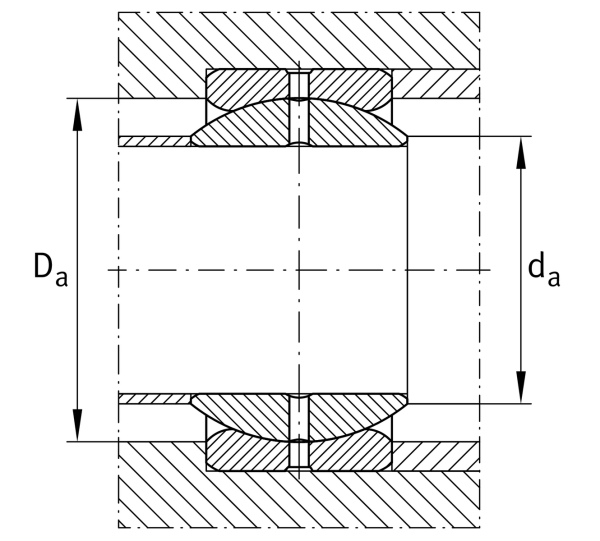

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
41.2 mm
Connection measure Inner ring
Da min
46.5 mm
Housing Connection Diameter
