INA GE40-AW-W11
Spherical Plain Bearings
Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
40 mm
Bore diameter bearing
D
105 mm
Outside diameter bearing
T
32 mm
Height
B
27 mm
Width Inner ring
Ca
1,120,000 N
Basic dynamic load rating, axial
C0a
1,870,000 N
Basic static load rating, axial
≈m
1.65 kg
Weight

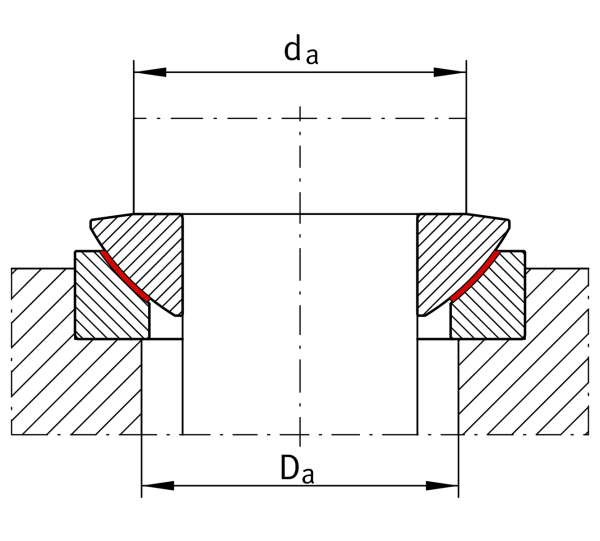

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
78 mm
Connection measure Inner ring
Da min
64 mm
Housing Connection Diameter
