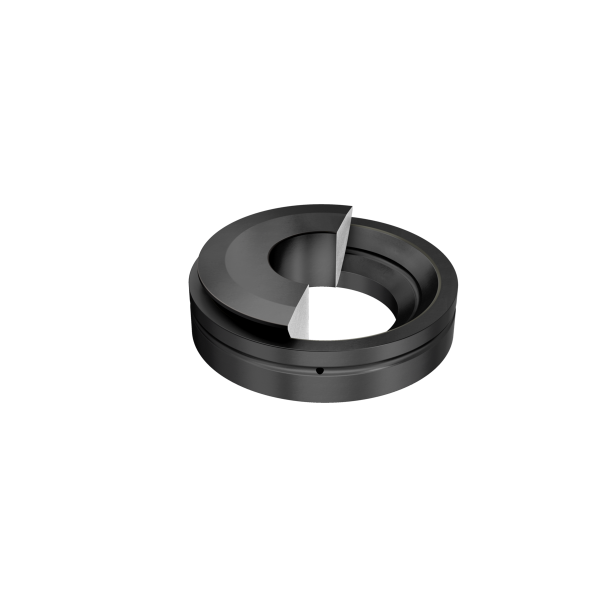

INA GE40-AX
Spherical Plain Bearings
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock

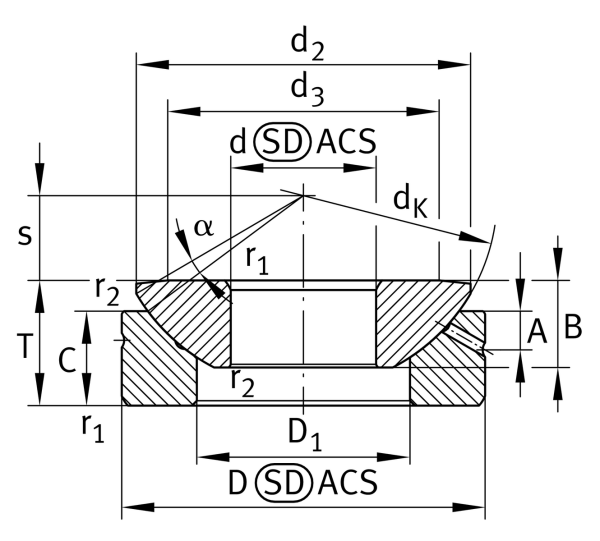

Main Dimensions & Performance Data
d
40 mm
Inner diameter bearing
D
105 mm
Outside diameter bearing
T
32 mm
Height
Ca
486,000 N
Basic dynamic load rating, axial
C0a
1,870,000 N
Basic static load rating, axial
≈m
1.622 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
78 mm
Connection measure Inner ring
Da min
64 mm
Housing Connection Diameter
