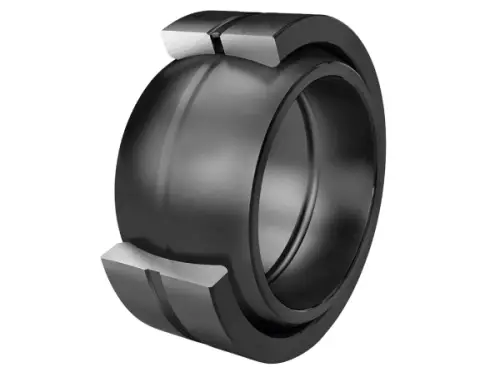

INA GE40-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open designu00A0High-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock

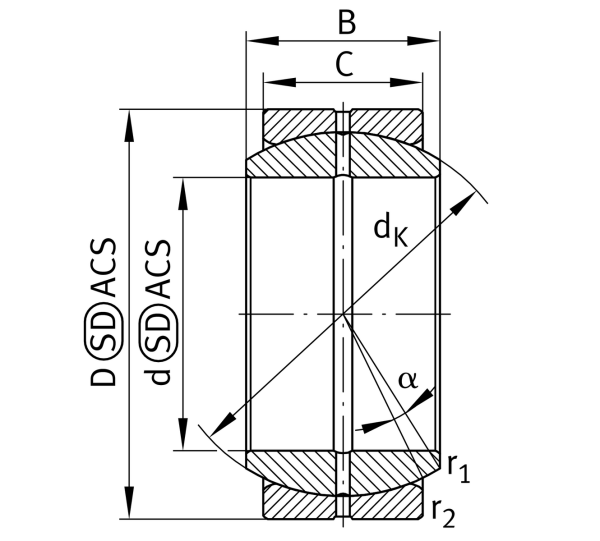

Main Dimensions & Performance Data
d
40 mm
Bore diameter bearing
D
62 mm
Outside diameter bearing
B
28 mm
Width Inner ring
Cr
129,000 N
Basic dynamic load rating, radial
C0r
496,000 N
Basic static load rating, radial
≈m
0.307 kg
Weight

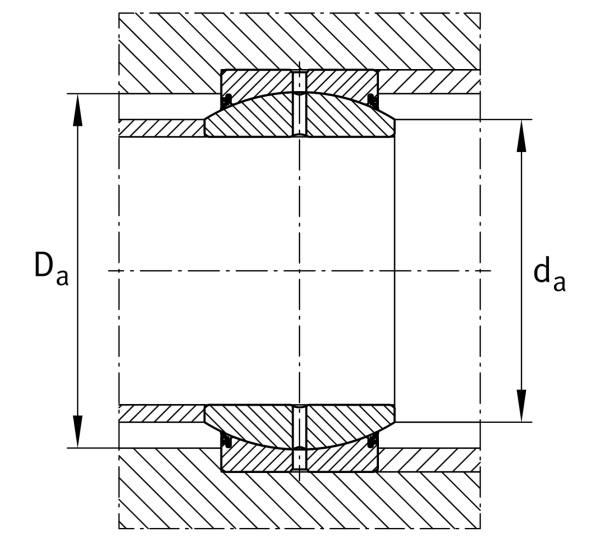

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
45 mm
Connection measure Inner ring
Da min
51 mm
Housing Connection Diameter
