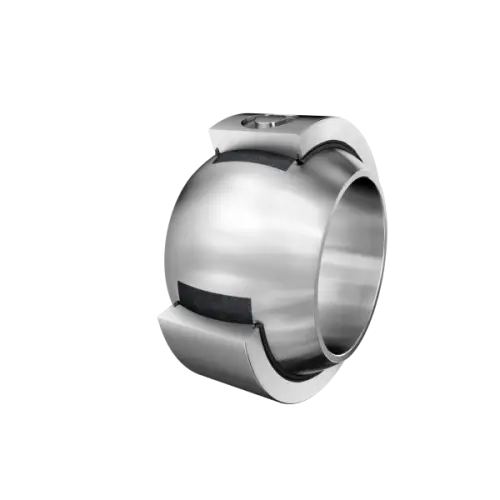

INA GE40-FW-2TS
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
(BRAND)：INA
(Availability)：In Stock

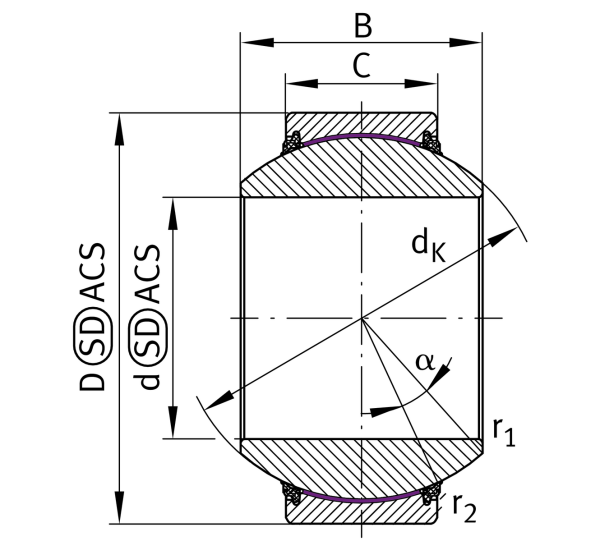

Main Dimensions & Performance Data
d
40 mm
Bore diameter bearing
D
68 mm
Outside diameter bearing
B
40 mm
Width Inner ring
C
25 mm
Width Outer ring
Cr
360,000 N
Basic dynamic load rating, radial
C0r
600,000 N
Basic static load rating, radial
≈m
0.516 kg
Weight

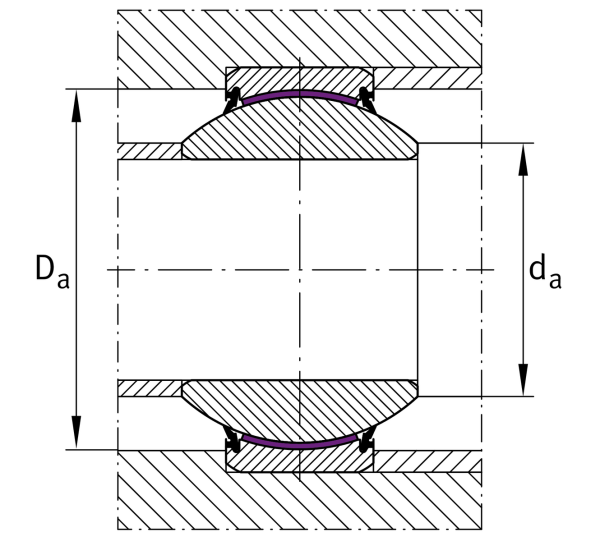

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
57 mm
Housing Connection Diameter
damax
44.7 mm
Connection measurement, inner ring
