INA GE400-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock

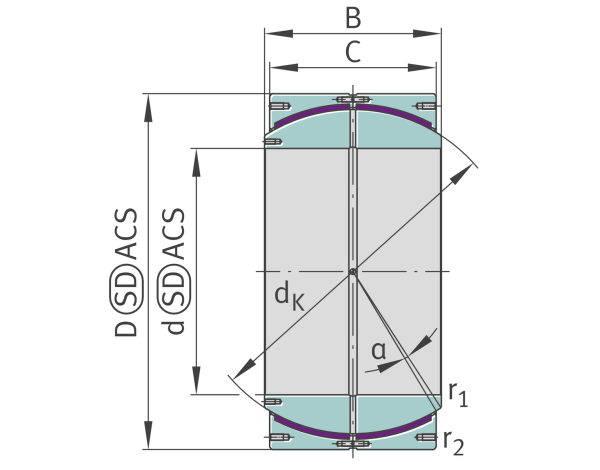

Main Dimensions & Performance Data
d
400 mm
Bore diameter bearing
D
580 mm
Outside diameter bearing
B
280 mm
Width Inner ring
C
265 mm
Width Outer ring
Cr
9,650,000 N
Basic dynamic load rating, radial
C0r
14,600,000 N
Basic static load rating, radial
≈m
275 kg
Weight

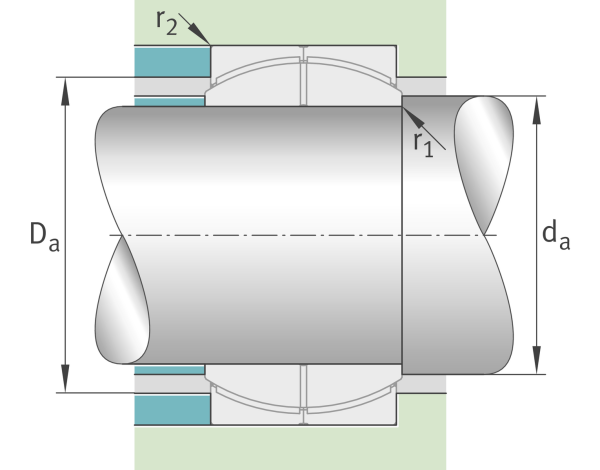

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
4 mm
Edge Spacing
Damin
478 mm
Housing Connection Diameter
damax
431 mm
Connection measurement, inner ring
