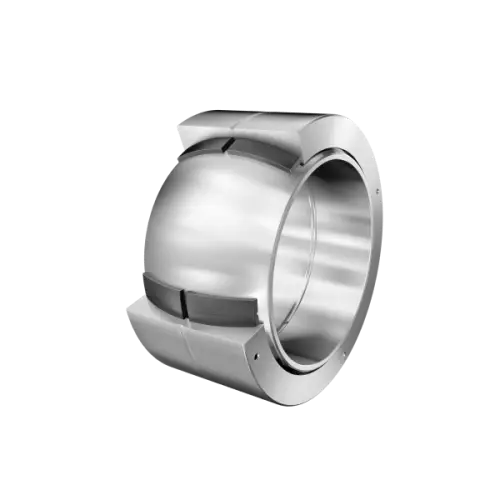

INA GE420-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock

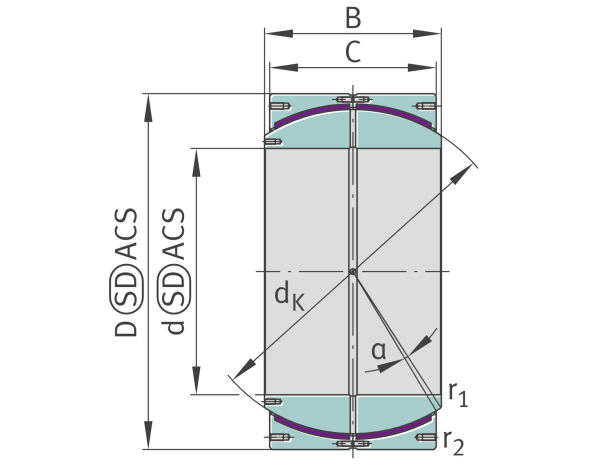

Main Dimensions & Performance Data
d
420 mm
Bore diameter bearing
D
600 mm
Outside diameter bearing
B
300 mm
Width Inner ring
C
280 mm
Width Outer ring
Cr
10,600,000 N
Basic dynamic load rating, radial
C0r
16,000,000 N
Basic static load rating, radial
≈m
300 kg
Weight
Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
4 mm
Edge Spacing
Damin
497 mm
Housing Connection Diameter
damax
441 mm
Connection measurement, inner ring
