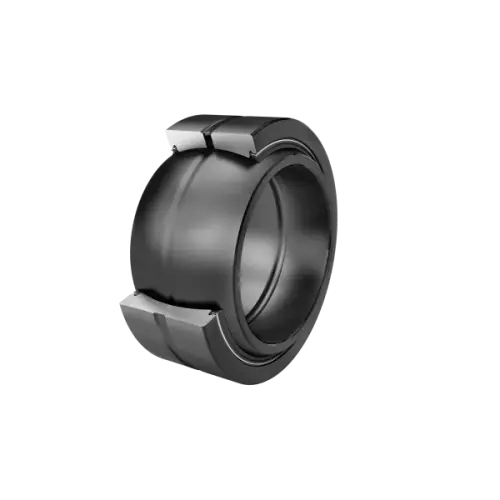

INA GE44-ZO-2RS-E
Spherical Plain Bearings
Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock

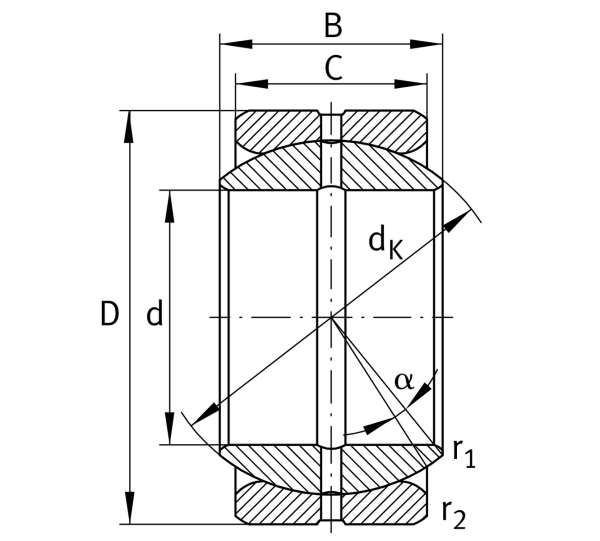

Main Dimensions & Performance Data
d
44.45 mm
Bore diameter bearing
D
71.438 mm
Outside diameter bearing
B
38.887 mm
Width Inner ring
Cr
170,000 N
Basic dynamic load rating, radial
C0r
852,000 N
Basic static load rating, radial
≈m
0.62 kg
Weight

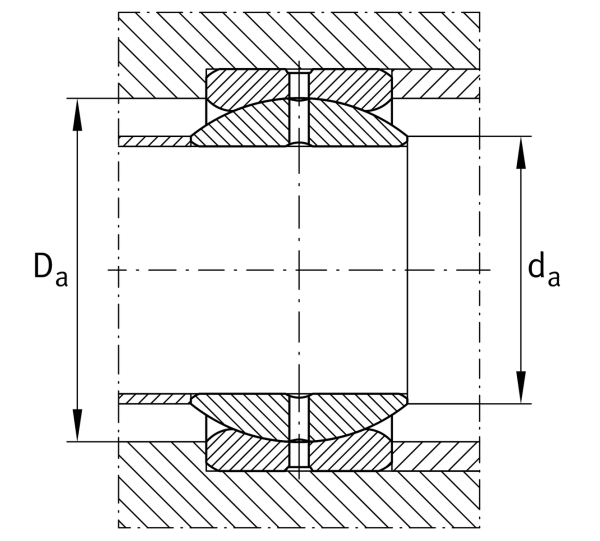

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
50.9 mm
Connection measure Inner ring
Da min
57 mm
Housing Connection Diameter
