INA GE440-DF-G9
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / hard chromium, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock

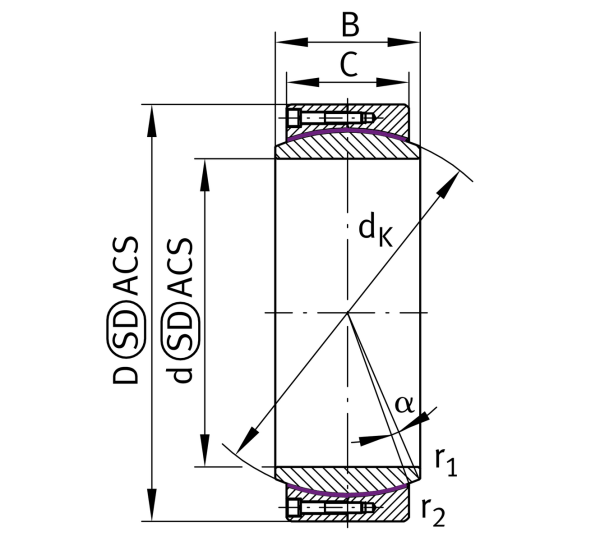

Main Dimensions & Performance Data
d
440 mm
Bore diameter bearing
D
600 mm
Outside diameter bearing
B
218 mm
Width Inner ring
C
185 mm
Width Outer ring
Cr
5,760,000 N
Basic dynamic load rating, radial
C0r
8,640,000 N
Basic static load rating, radial
≈m
176.9 kg
Weight

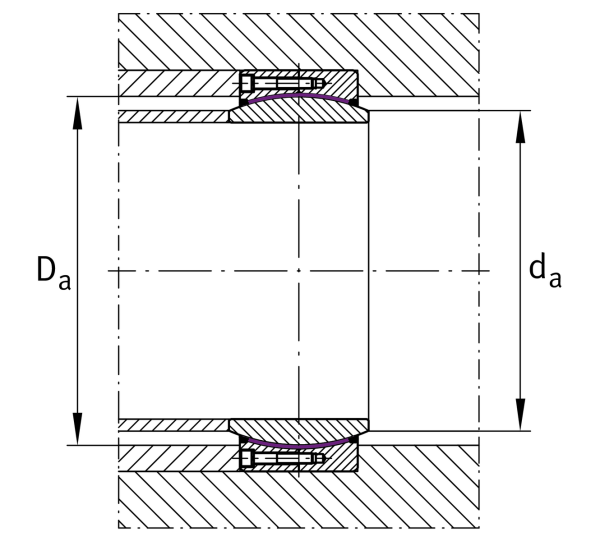

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
491 mm
Housing Connection Diameter
damax
472.1 mm
Connection measurement, inner ring
