INA GE440-DW-XL
Spherical Plain Bearings

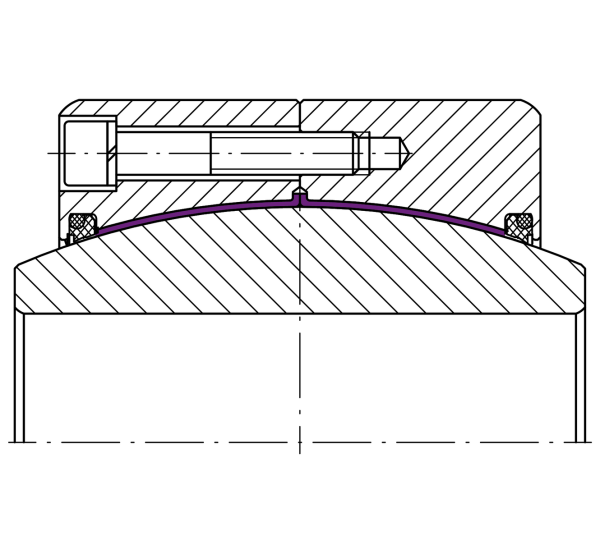

Large radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock

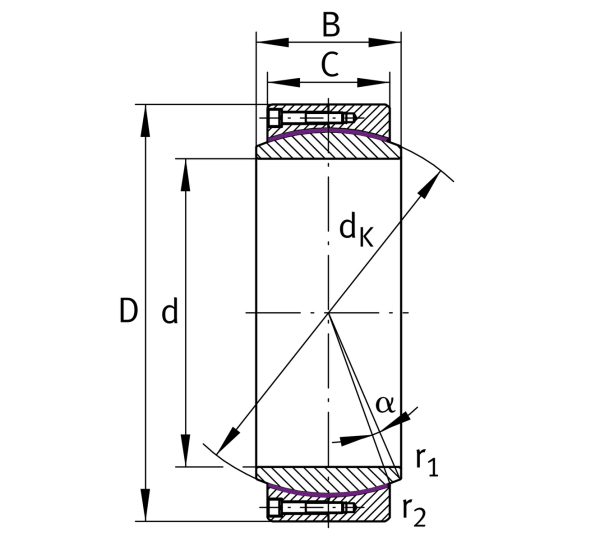

Main Dimensions & Performance Data
d
440 mm
Bore diameter bearing
D
600 mm
Outside diameter bearing
B
218 mm
Width Inner ring
C
185 mm
Width Outer ring
Cr
28,900,000 N
Basic dynamic load rating, radial
C0r
48,100,000 N
Basic static load rating, radial
≈m
193.8 kg
Weight
Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
4 mm
Edge Spacing
Damin
491 mm
Housing Connection Diameter
damax
472 mm
Connection measurement, inner ring
