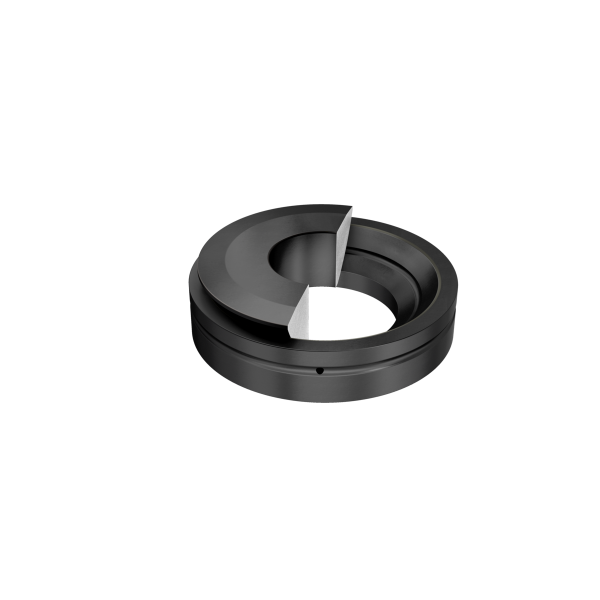

INA GE45-AX
Spherical Plain Bearings
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock

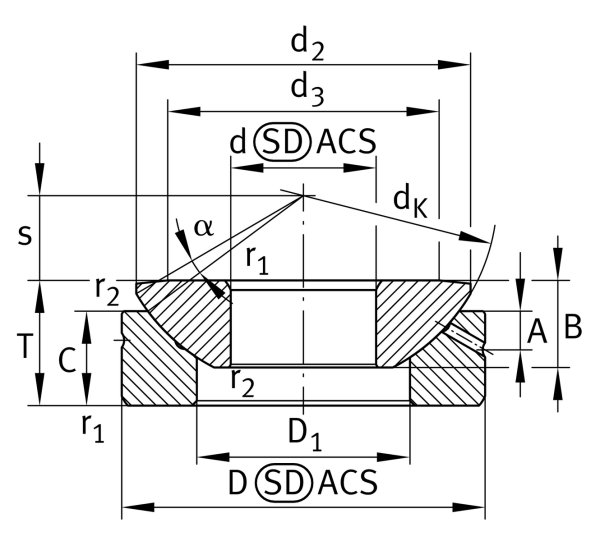

Main Dimensions & Performance Data
d
45 mm
Inner diameter bearing
D
120 mm
Outside diameter bearing
T
36.5 mm
Height
Ca
632,000 N
Basic dynamic load rating, axial
C0a
2,430,000 N
Basic static load rating, axial
≈m
2.49 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
89 mm
Connection measure Inner ring
Da min
74 mm
Housing Connection Diameter
