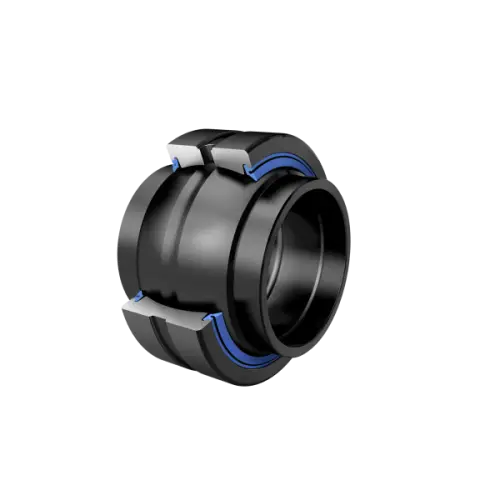

INA GE45-HO-2RS-E
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, cylindrical extensions on inner ring, sealed
(BRAND)：INA
(Availability)：In Stock

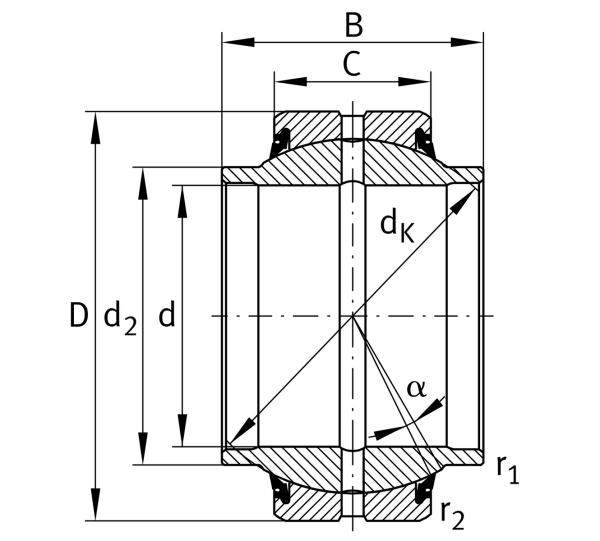

Main Dimensions & Performance Data
d
45 mm
Bore diameter bearing
D
68 mm
Outside diameter bearing
B
40 mm
Width Inner ring
Cr
128,000 N
Basic dynamic load rating, radial
C0r
638,000 N
Basic static load rating, radial
≈m
0.43 kg
Weight

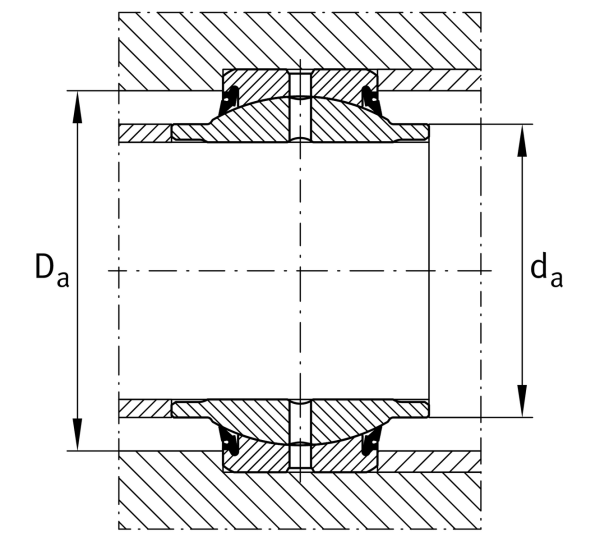

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
51.5 mm
Connection measure Inner ring
Da min
57.4 mm
Housing Connection Diameter
