INA GE460-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
460 mm
Bore diameter bearing
D
620 mm
Outside diameter bearing
B
218 mm
Width Inner ring
Cr
12,500,000 N
Basic dynamic load rating, radial
C0r
48,200,000 N
Basic static load rating, radial
≈m
200.7 kg
Weight

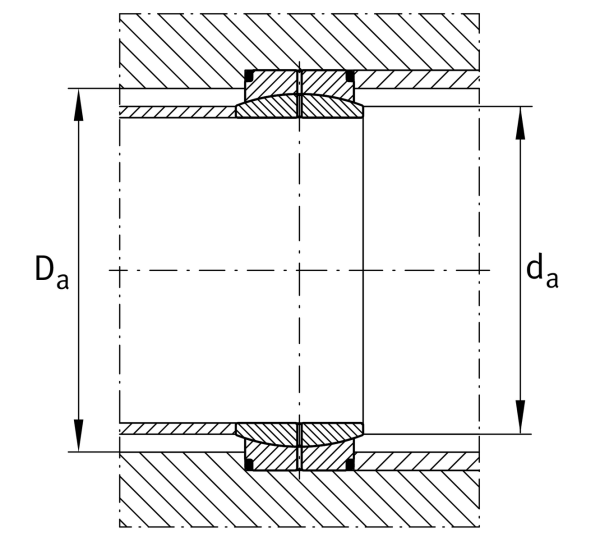

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
4 mm
Edge Spacing
da max
494 mm
Connection measure Inner ring
Da min
513 mm
Housing Connection Diameter
