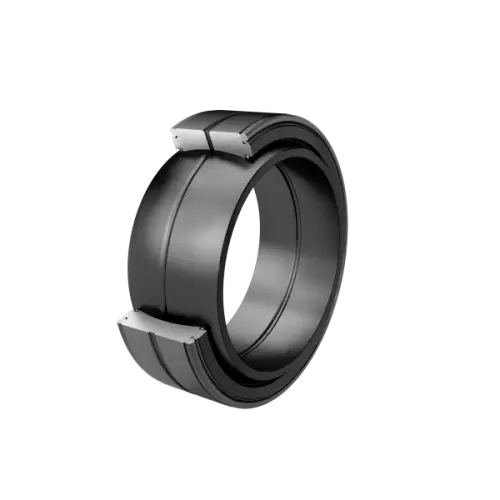

INA GE480-DO-2RS4
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel; DIN ISO 12240-1, dimension series C, sealed
(BRAND)：INA
(Availability)：In Stock

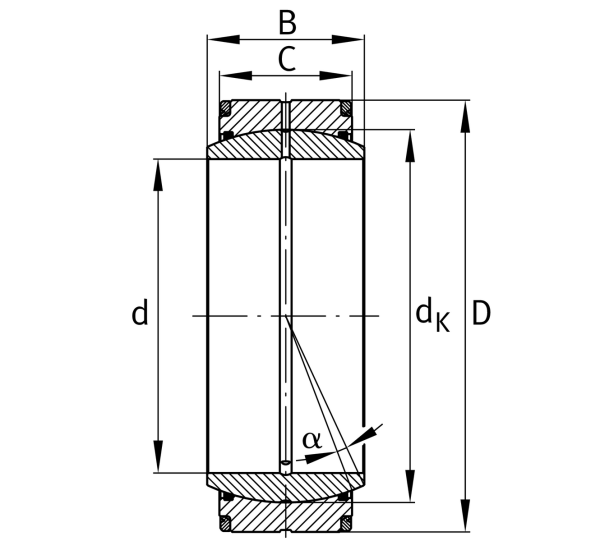

Main Dimensions & Performance Data
d
480 mm
Bore diameter bearing
D
650 mm
Outside diameter bearing
B
230 mm
Width Inner ring
Cr
12,000,000 N
Basic dynamic load rating, radial
C0r
46,000,000 N
Basic static load rating, radial
≈m
232.6 kg
Weight
Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
5 mm
Edge Spacing
da max
516 mm
Connection measure Inner ring
Da min
536 mm
Housing Connection Diameter
