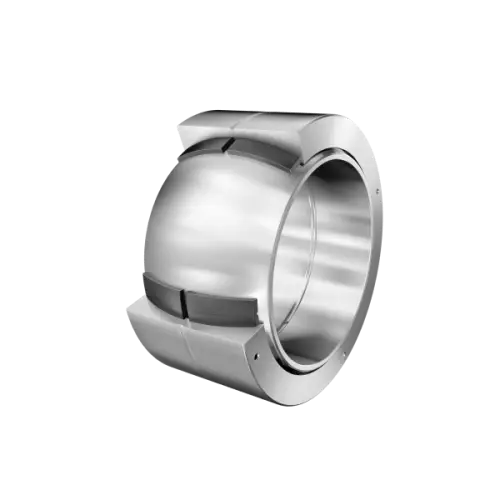

INA GE480-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock

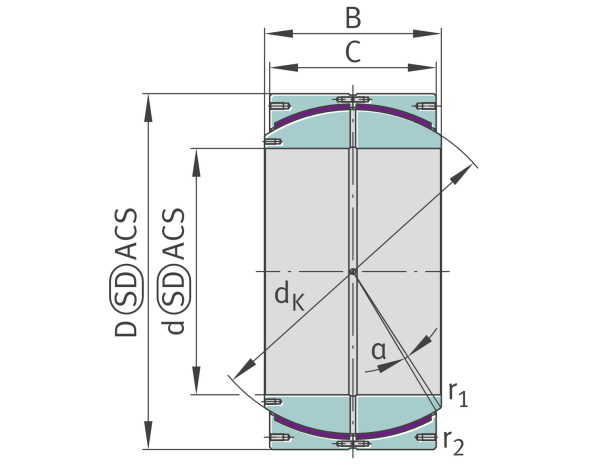

Main Dimensions & Performance Data
d
480 mm
Bore diameter bearing
D
680 mm
Outside diameter bearing
B
340 mm
Width Inner ring
C
320 mm
Width Outer ring
Cr
14,300,000 N
Basic dynamic load rating, radial
C0r
21,200,000 N
Basic static load rating, radial
≈m
435 kg
Weight

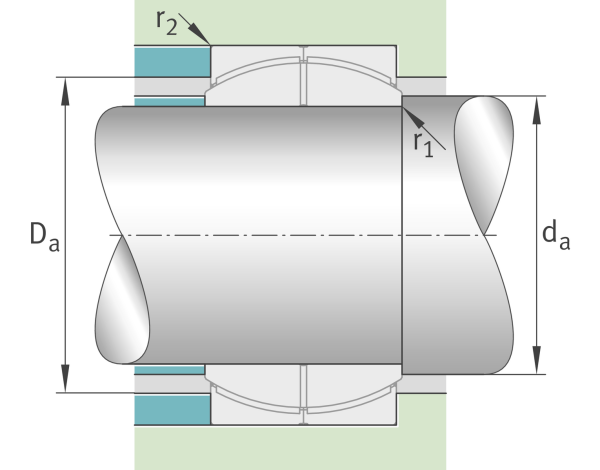

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
5 mm
Edge Spacing
Damin
580 mm
Housing Connection Diameter
damax
522 mm
Connection measurement, inner ring
