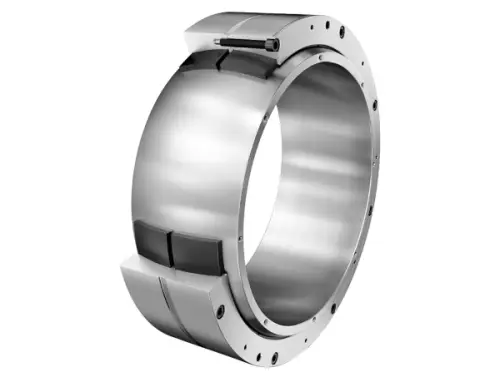

INA GE500-DF-G9
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / hard chromium, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock

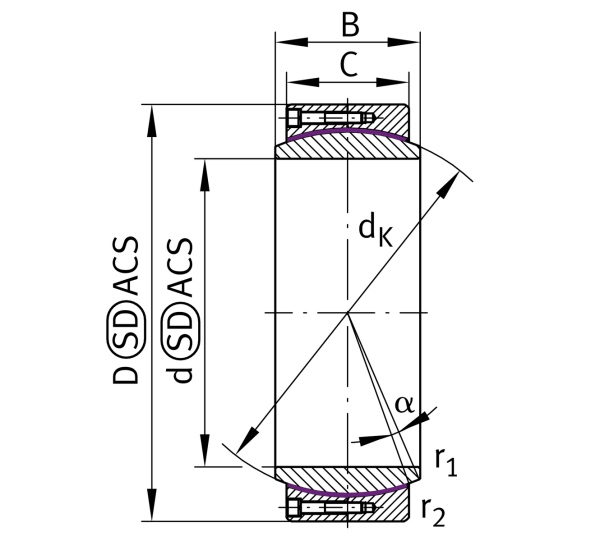

Main Dimensions & Performance Data
d
500 mm
Bore diameter bearing
D
670 mm
Outside diameter bearing
B
230 mm
Width Inner ring
C
195 mm
Width Outer ring
Cr
6,850,000 N
Basic dynamic load rating, radial
C0r
10,300,000 N
Basic static load rating, radial
≈m
224.8 kg
Weight
Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
557 mm
Housing Connection Diameter
damax
537.9 mm
Connection measurement, inner ring
