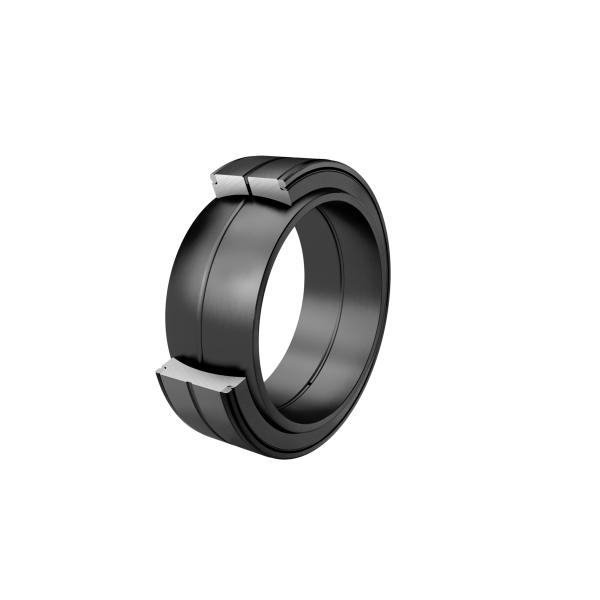

INA GE500-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
500 mm
Bore diameter bearing
D
670 mm
Outside diameter bearing
B
230 mm
Width Inner ring
Cr
14,300,000 N
Basic dynamic load rating, radial
C0r
54,900,000 N
Basic static load rating, radial
≈m
244.4 kg
Weight

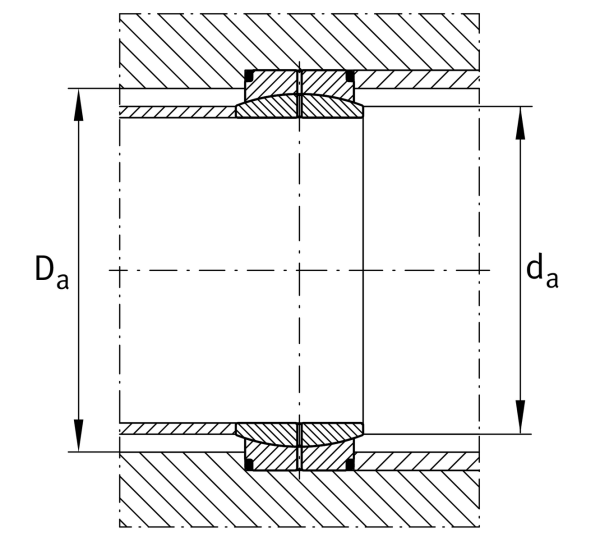

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
5 mm
Edge Spacing
da max
537.9 mm
Connection measure Inner ring
Da min
557 mm
Housing Connection Diameter
