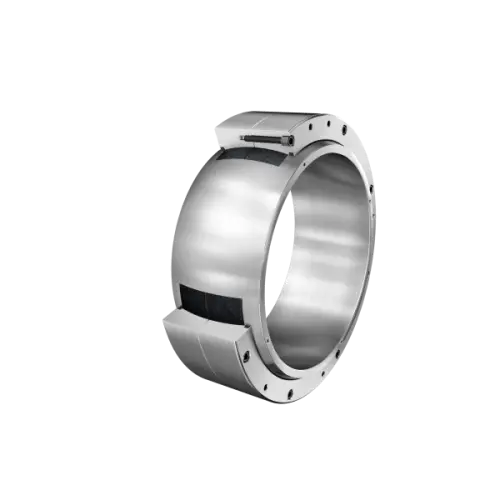

INA GE530-DW-XL
Spherical Plain Bearings
Large radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock

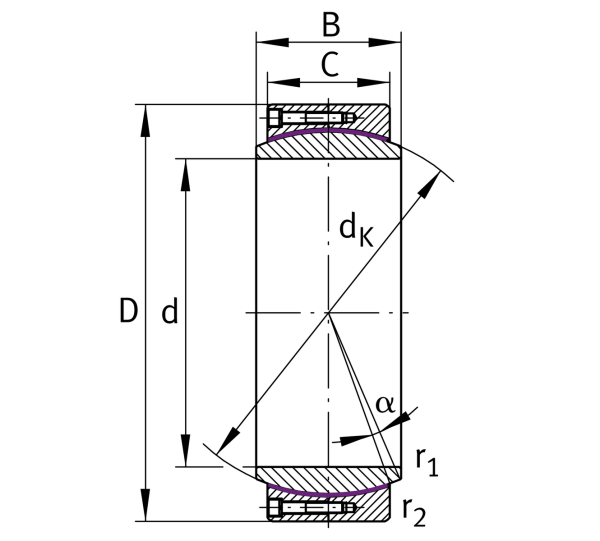

Main Dimensions & Performance Data
d
530 mm
Bore diameter bearing
D
710 mm
Outside diameter bearing
B
243 mm
Width Inner ring
C
205 mm
Width Outer ring
Cr
38,100,000 N
Basic dynamic load rating, radial
C0r
63,600,000 N
Basic static load rating, radial
≈m
290.5 kg
Weight
Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
5 mm
Edge Spacing
Damin
591 mm
Housing Connection Diameter
damax
570.3 mm
Connection measurement, inner ring
