INA GE55-SX-F10
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

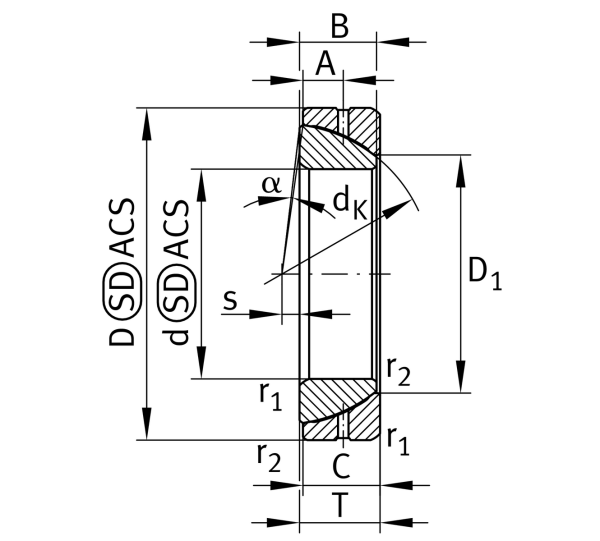

Main Dimensions & Performance Data
d
55 mm
Inner diameter bearing
D
90 mm
Outside diameter bearing
T
23 mm
Height
Cr
194,000 N
Basic dynamic load rating, radial
C0r
746,000 N
Basic static load rating, radial
≈m
0.668 kg
Weight

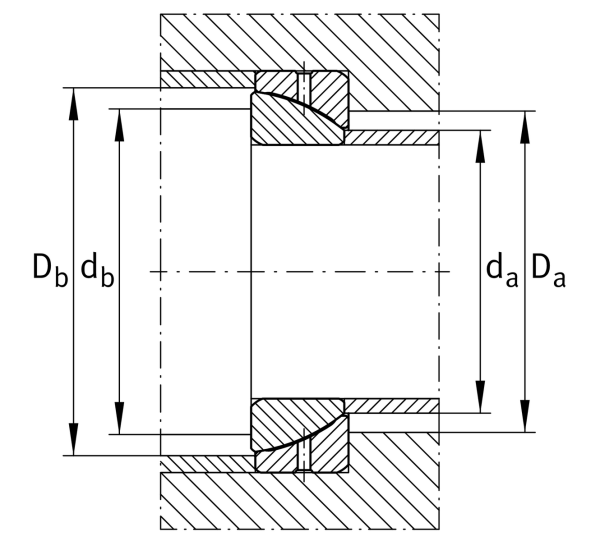

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
60.8 mm
Connection measure Inner ring
Da min
70 mm
Housing Connection Diameter
Db min
81 mm
Connection diameter
