INA GE560-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock

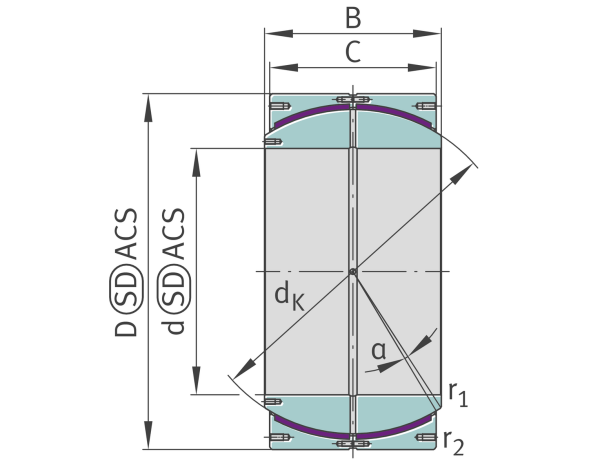

Main Dimensions & Performance Data
d
560 mm
Bore diameter bearing
D
800 mm
Outside diameter bearing
B
400 mm
Width Inner ring
C
380 mm
Width Outer ring
Cr
19,600,000 N
Basic dynamic load rating, radial
C0r
29,000,000 N
Basic static load rating, radial
≈m
730 kg
Weight

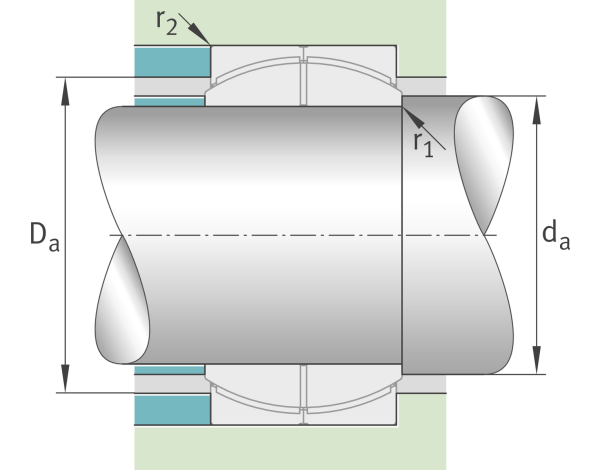

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
5 mm
Edge Spacing
Damin
673 mm
Housing Connection Diameter
damax
602 mm
Connection measurement, inner ring
