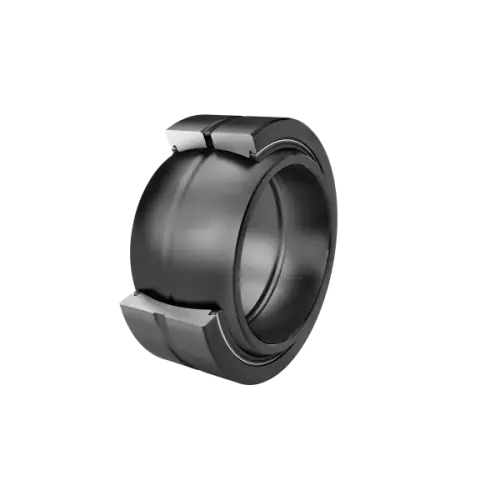

INA GE57-ZO-2RS-E
Spherical Plain Bearings
Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock

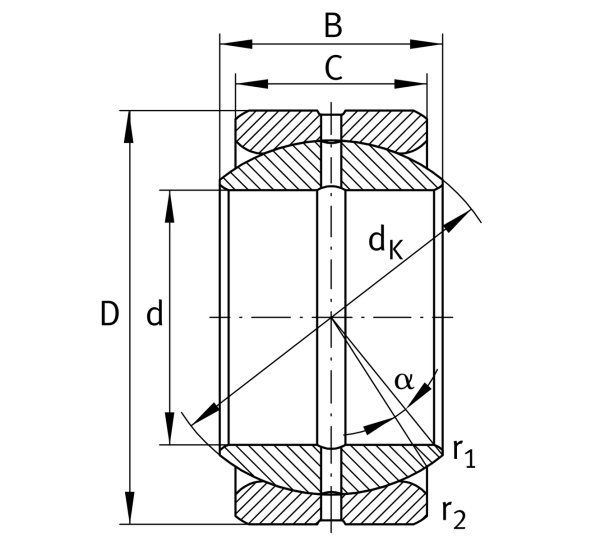

Main Dimensions & Performance Data
d
57.15 mm
Bore diameter bearing
D
90.488 mm
Outside diameter bearing
B
50.013 mm
Width Inner ring
Cr
281,000 N
Basic dynamic load rating, radial
C0r
1,410,000 N
Basic static load rating, radial
≈m
1.6 kg
Weight

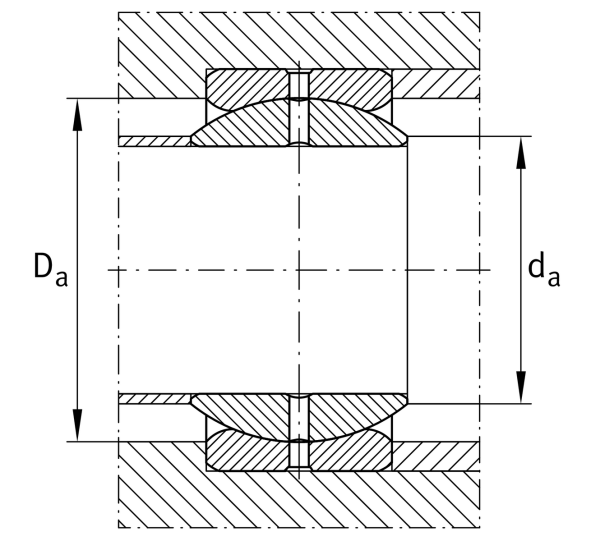

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
65 mm
Connection measure Inner ring
Da min
73 mm
Housing Connection Diameter
