INA GE60-FW-2TS
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
(BRAND)：INA
(Availability)：In Stock

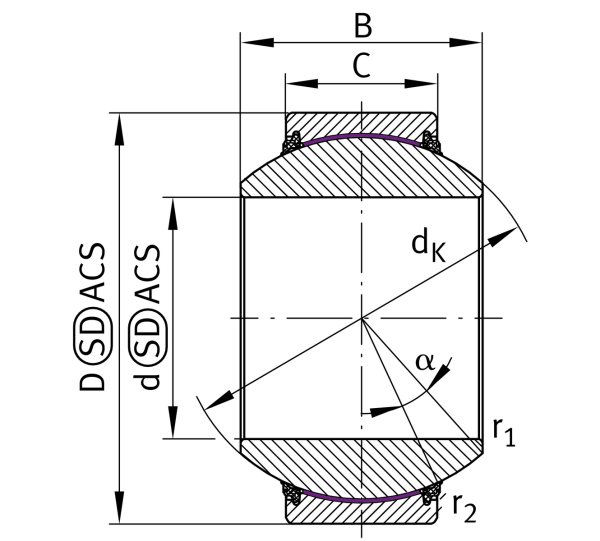

Main Dimensions & Performance Data
d
60 mm
Bore diameter bearing
D
105 mm
Outside diameter bearing
B
63 mm
Width Inner ring
C
40 mm
Width Outer ring
Cr
883,000 N
Basic dynamic load rating, radial
C0r
1,470,000 N
Basic static load rating, radial
≈m
2.07 kg
Weight

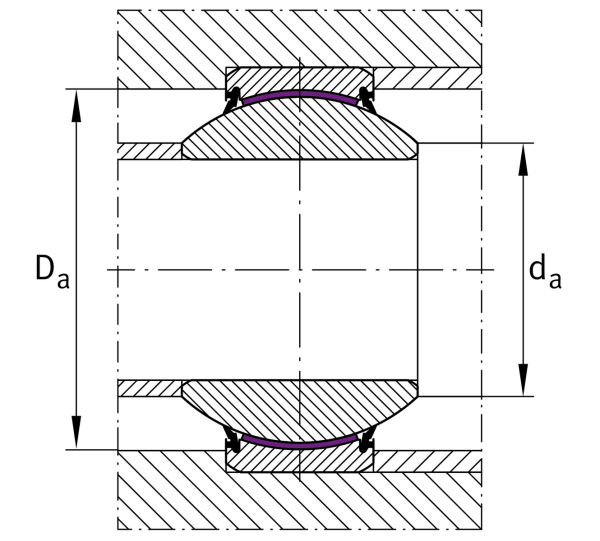

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
87 mm
Housing Connection Diameter
damax
67 mm
Connection measurement, inner ring
