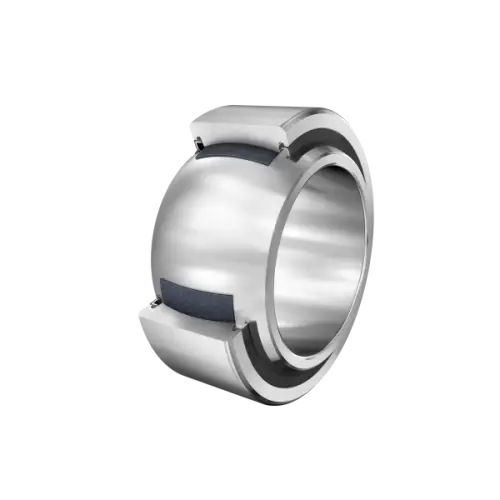

INA GE60-UK-2TS-W11
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

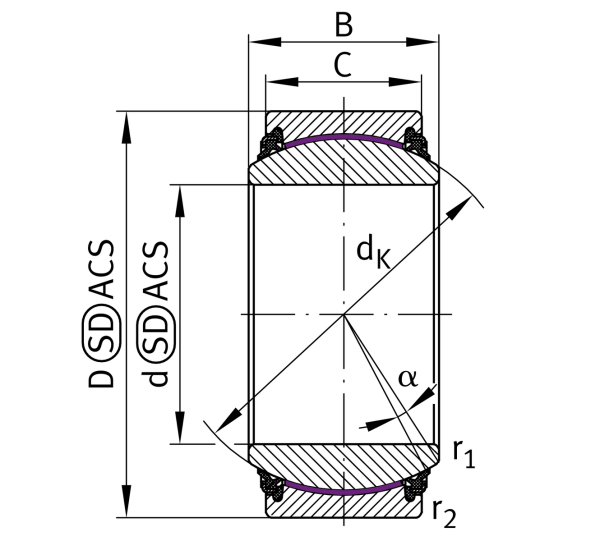

Main Dimensions & Performance Data
d
60 mm
Bore diameter bearing
D
90 mm
Outside diameter bearing
B
44 mm
Width Inner ring
C
36 mm
Width Outer ring
Cr
691,000 N
Basic dynamic load rating, radial
C0r
1,150,000 N
Basic static load rating, radial
≈m
1.01 kg
Weight

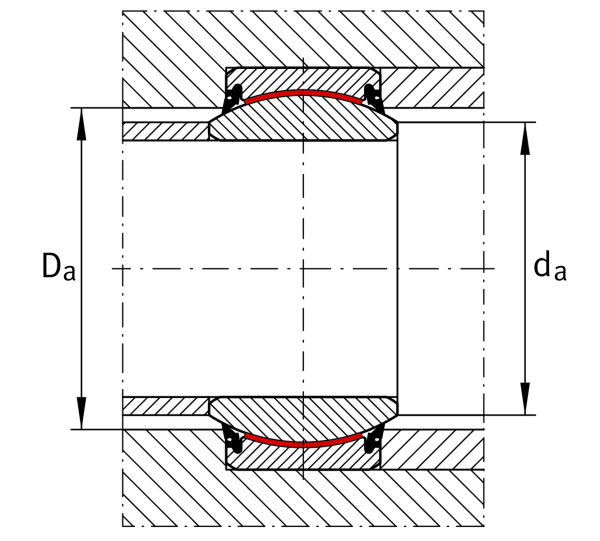

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
75 mm
Housing Connection Diameter
damax
66.8 mm
Connection measurement, inner ring
