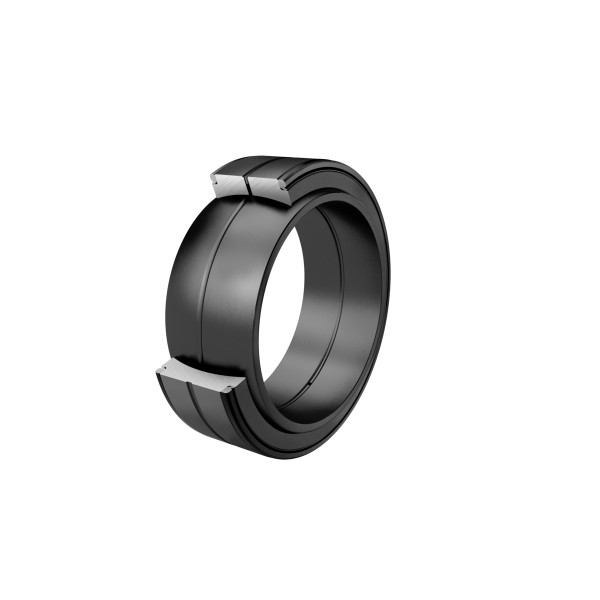

INA GE600-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
600 mm
Bore diameter bearing
D
800 mm
Outside diameter bearing
B
272 mm
Width Inner ring
Cr
20,200,000 N
Basic dynamic load rating, radial
C0r
77,700,000 N
Basic static load rating, radial
≈m
407.28 kg
Weight

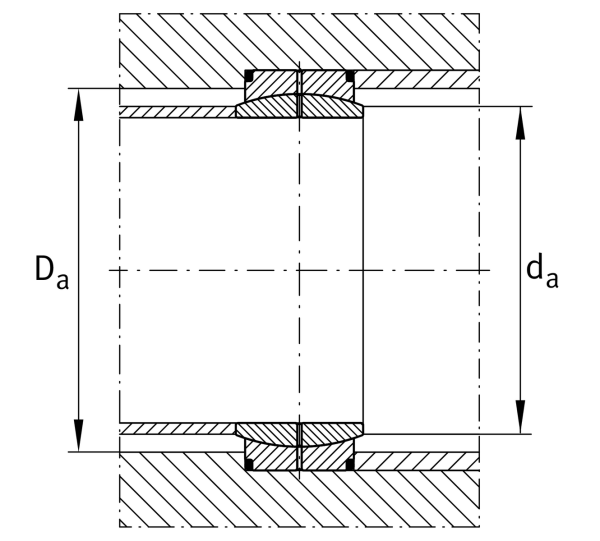

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
5 mm
Edge Spacing
da max
645 mm
Connection measure Inner ring
Da min
667 mm
Housing Connection Diameter
