INA GE63-ZO-2RS-E

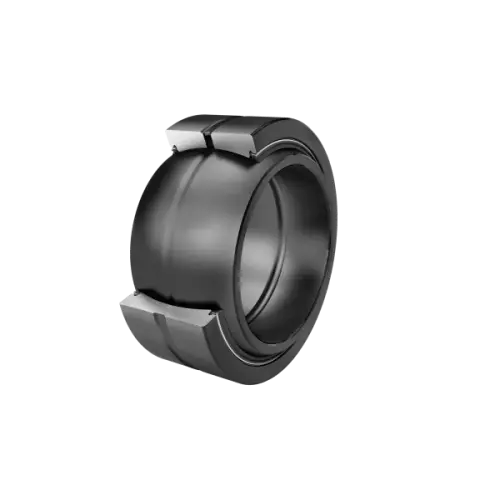

Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/stee,, inch size, sealed design
(BRAND)：INA
(Availability)：In Stock

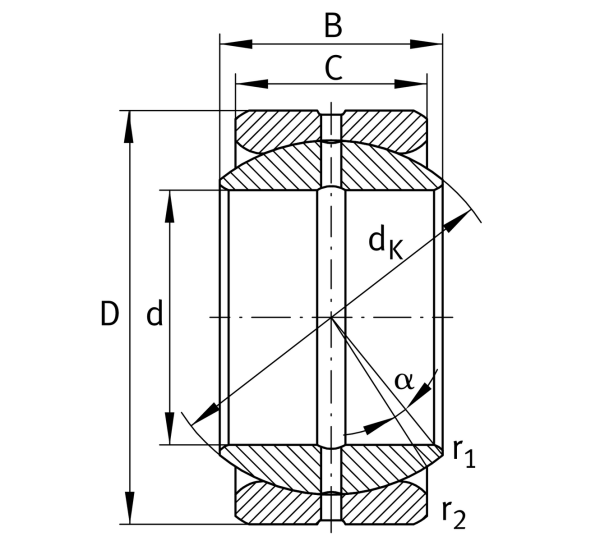

Main Dimensions & Performance Data
d
63.5 mm
Bore diameter bearing
D
100.013 mm
Outside diameter bearing
B
55.55 mm
Width Inner ring
Cr
351,000 N
Basic dynamic load rating, radial
C0r
1,750,000 N
Basic static load rating, radial
≈m
1.7 kg
Weight

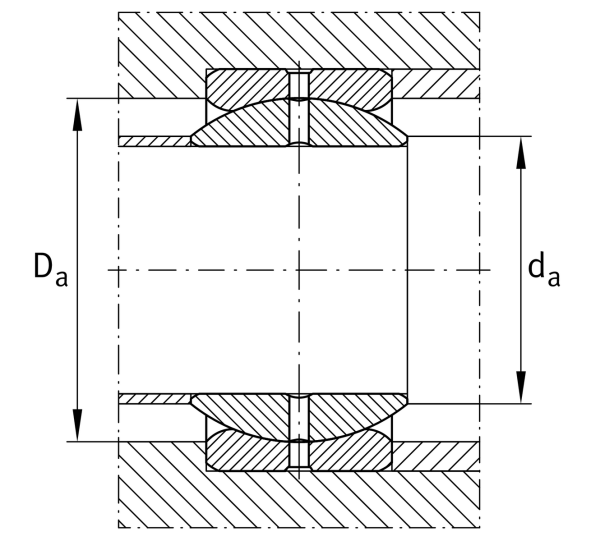

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
73.3 mm
Connection measure Inner ring
Da min
82 mm
Housing Connection Diameter
