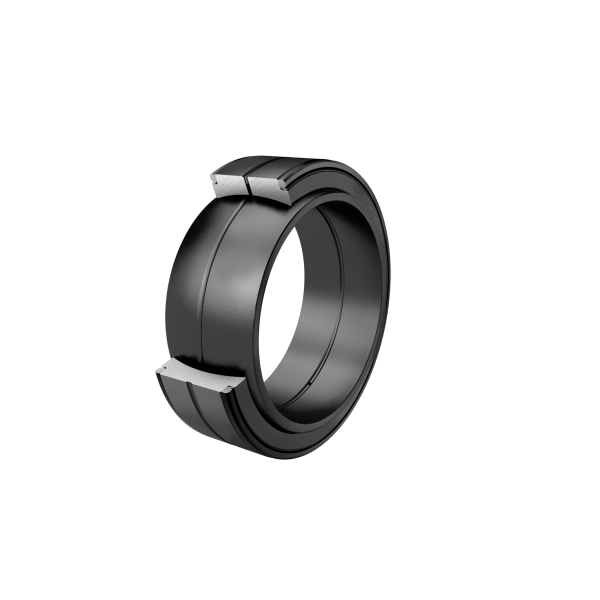

INA GE630-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
630 mm
Bore diameter bearing
D
850 mm
Outside diameter bearing
B
300 mm
Width Inner ring
Cr
24,100,000 N
Basic dynamic load rating, radial
C0r
92,800,000 N
Basic static load rating, radial
≈m
530.2 kg
Weight

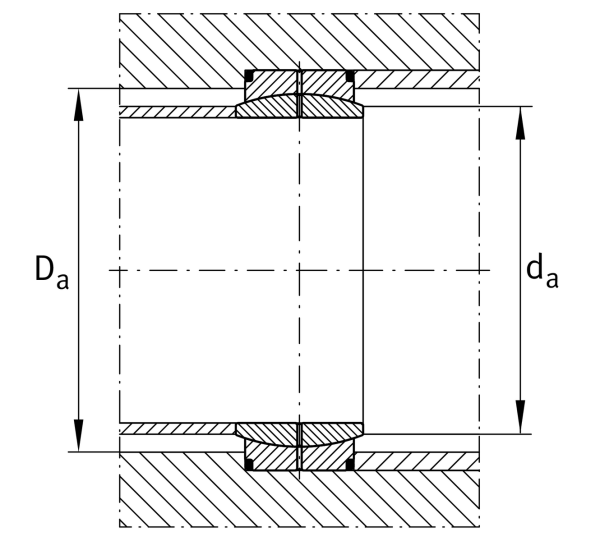

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
6 mm
Edge Spacing
da max
676.5 mm
Connection measure Inner ring
Da min
698 mm
Housing Connection Diameter
