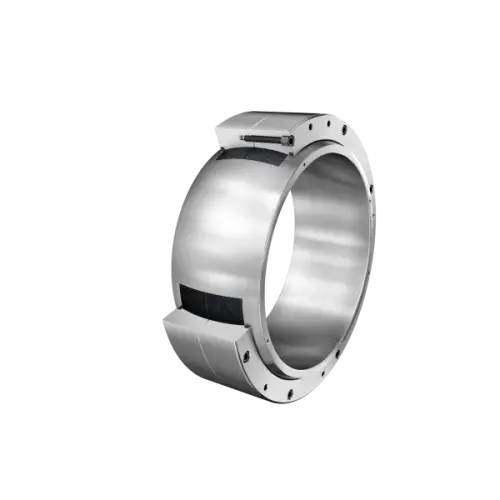

INA GE630-DW-2RS2-XL
Spherical Plain Bearings
Large radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series C, sealed
(BRAND)：INA
(Availability)：In Stock

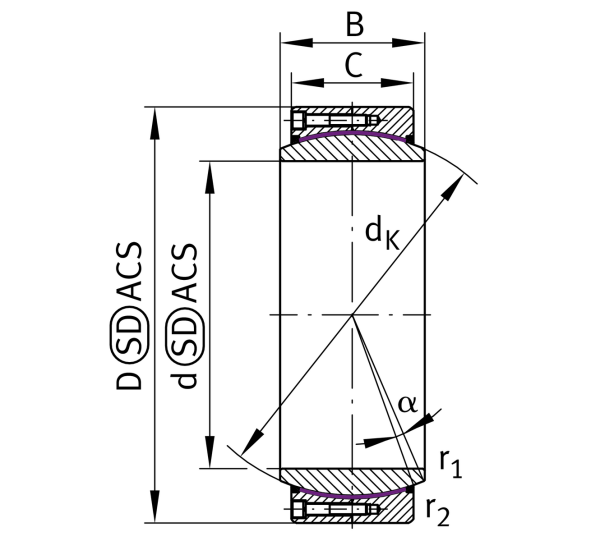

Main Dimensions & Performance Data
d
630 mm
Bore diameter bearing
D
850 mm
Outside diameter bearing
B
300 mm
Width Inner ring
C
260 mm
Width Outer ring
Cr
51,500,000 N
Basic dynamic load rating, radial
C0r
85,800,000 N
Basic static load rating, radial
≈m
529 kg
Weight

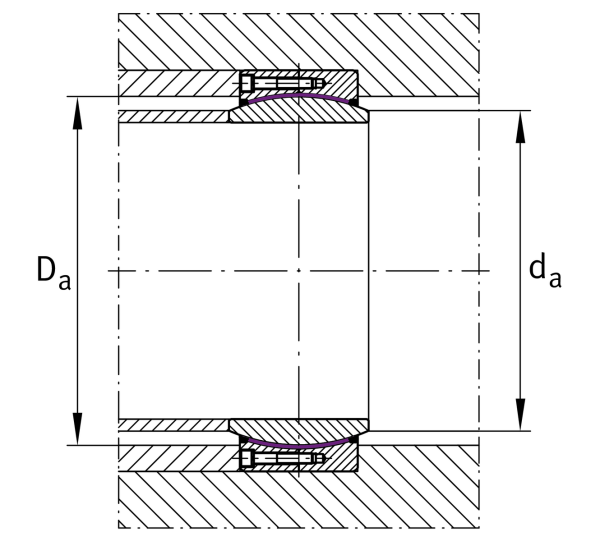

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
6 mm
Edge Spacing
Damin
698 mm
Housing Connection Diameter
damax
676.4 mm
Connection measurement, inner ring
