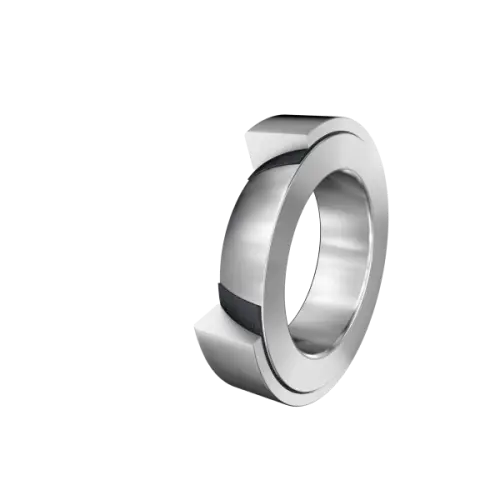

INA GE65-SW
Spherical Plain Bearings

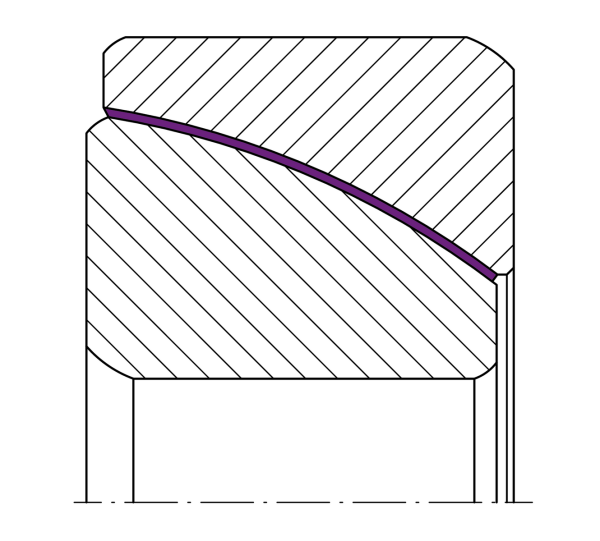

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

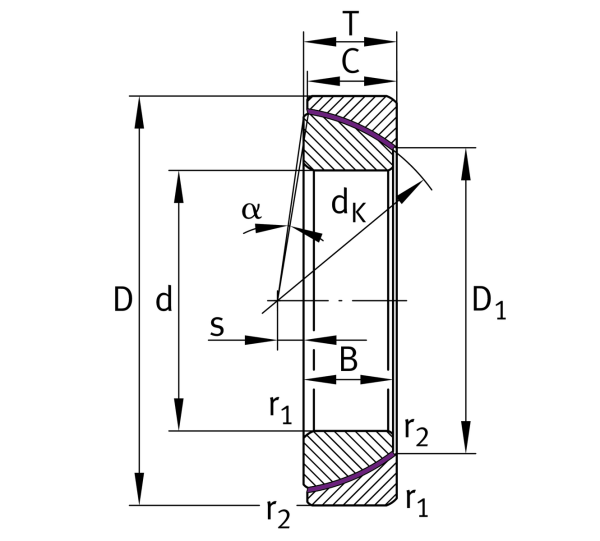

Main Dimensions & Performance Data
d
65 mm
Bore diameter bearing
D
100 mm
Outside diameter bearing
T
23 mm
Height
B
22 mm
Width Inner ring
Cr
520,000 N
Basic dynamic load rating, radial
C0r
867,000 N
Basic static load rating, radial
≈m
0.77 kg
Weight

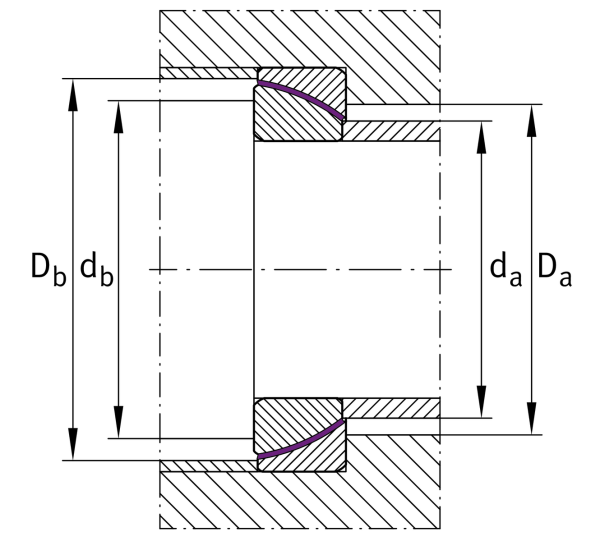

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
74.4 mm
Connection measure Inner ring
Db min
93 mm
Connection diameter
db max
83 mm
Connection measure Inner ring
Da min
84 mm
Housing Connection Diameter
