INA GE65-SX-F10
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

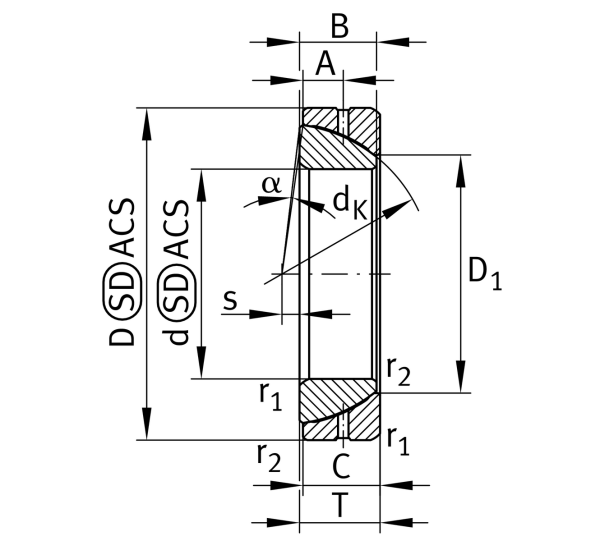

Main Dimensions & Performance Data
d
65 mm
Inner diameter bearing
D
100 mm
Outside diameter bearing
T
23 mm
Height
Cr
226,000 N
Basic dynamic load rating, radial
C0r
867,000 N
Basic static load rating, radial
≈m
0.77 kg
Weight

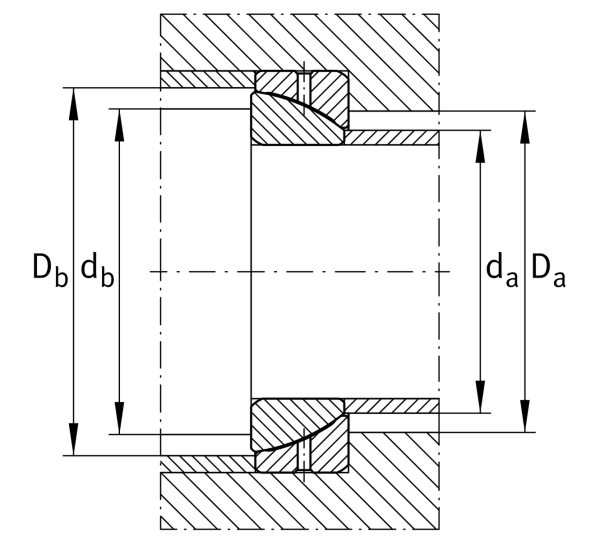

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
74.5 mm
Connection measure Inner ring
Da min
84 mm
Housing Connection Diameter
Db min
93 mm
Connection diameter
