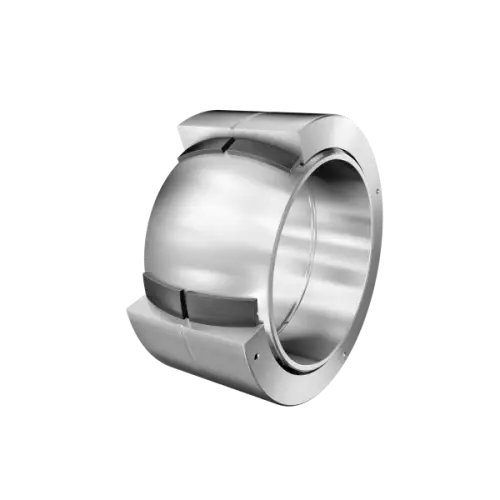

INA GE710-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
710 mm
Bore diameter bearing
D
1,000 mm
Outside diameter bearing
B
500 mm
Width Inner ring
C
475 mm
Width Outer ring
Cr
31,000,000 N
Basic dynamic load rating, radial
C0r
46,500,000 N
Basic static load rating, radial
≈m
1,400 kg
Weight
Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
6 mm
Edge Spacing
Damin
849 mm
Housing Connection Diameter
damax
762 mm
Connection measurement, inner ring
