INA GE750-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
750 mm
Bore diameter bearing
D
1,000 mm
Outside diameter bearing
B
335 mm
Width Inner ring
Cr
30,700,000 N
Basic dynamic load rating, radial
C0r
118,000,000 N
Basic static load rating, radial
≈m
779.2 kg
Weight

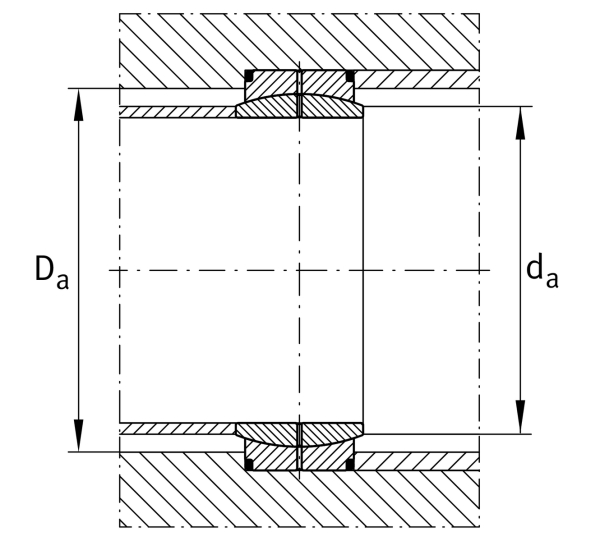

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
6 mm
Edge Spacing
da max
808.3 mm
Connection measure Inner ring
Da min
834 mm
Housing Connection Diameter
